RV Double Worm Gearbox with AC Electric Motor 380V 50Hz

Product Description

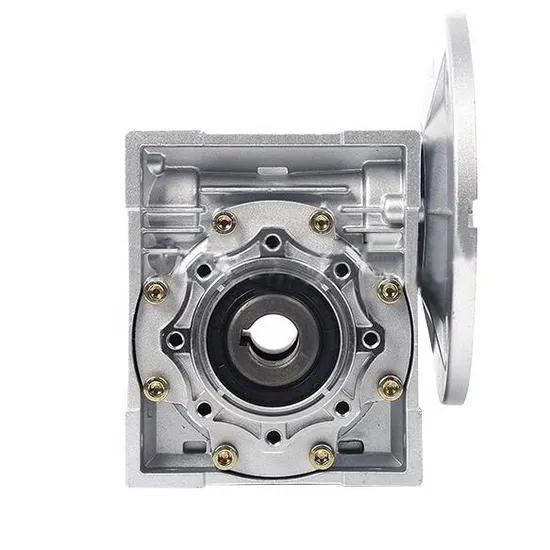

Detailed Photos


Product Description Components:
1. Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized
layer after precise grinding
4. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC-normalized Motor Flange
Solid Shaft Input
Worm Shaft Tail Extension Input
5. Output Configurations:
Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output
Models:
Hollow Shaft Input with IEC-normalized Motor Flange
RV025~RV150
Solid Shaft Input
RV025~RV150

Product Parameters Technical Data

Models	Rated Power	Rated Ratio	Input Hole Dia.	Input Shaft Dia.	Output Hole Dia.	Output Shaft Dia.
RV025	0.06KW~0.12KW	5~60	Φ9	Φ9	Φ11	Φ11
RV030	0.06KW~0.25KW	5~80	Φ9(Φ11)	Φ9	Φ14	Φ14
RV040	0.09KW~0.55KW	5~100	Φ9(Φ11,Φ14)	Φ11	Φ18(Φ19)	Φ18
RV050	0.12KW~1.5KW	5~100	Φ11(Φ14,Φ19)	Φ14	Φ25(Φ24)	Φ25
RV063	0.18KW~2.2KW	7.5~100	Φ14(Φ19,Φ24)	Φ19	Φ25(Φ28)	Φ25
RV075	0.25KW~4.0KW	7.5~100	Φ14(Φ19,Φ24,Φ28)	Φ24	Φ28(Φ35)	Φ28
RV090	0.37KW~4.0KW	7.5~100	Φ19(Φ24,Φ28)	Φ24	Φ35(Φ38)	Φ35
RV110	0.55KW~7.5KW	7.5~100	Φ19(Φ24,Φ28,Φ38)	Φ28	Φ42	Φ42
RV130	0.75KW~7.5KW	7.5~100	Φ24(Φ28,Φ38)	Φ30	Φ45	Φ45
RV150	2.2KW~15KW	7.5~100	Φ28(Φ38,Φ42)	Φ35	Φ50	Φ50

Ratio: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
Installation:
Flange Mounted
Foot Mounted
Torque Arm Mounted
Lubrication:
Grease Lubrication
Oil-bath and Splash Lubrication
Cooling:
Natural Cooling
Certifications



Company Profile Dawang Transmission Equipment Co., Ltd. located Hangzhou city, Zhejiang, as one professional manufacturer
and exporter of cycloidal pin wheel reducer,worm reducer, gear reducer, gearbox , AC motor and relative spare
parts, owns rich experience in this line for many years.
We are one direct factory, with advanced production equipment, the strong development team and producing
capacity to offer quality products for customers.
Our products widely served to various industries of Metallurgy, Chemicals, lifting,mining,Petroleum,textile,medicine,wooden etc. Main markets: China, Africa,Australia,Vietnam, Turkey,
Japan, Korea, Philippines...
Welcome to ask us any questions, good offer always for you for long term business.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q:How to choose a gearbox which meets your requirement?A:You can refer to our catalogue to choose the gearbox or we can help to choose when you providethe technical information of required output torque, output speed and motor parameter etc.
Q: What information shall we give before placing a purchase order?A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.b) Housing color.c) Purchase quantity.d) Other special requirements.
