1-16 Loop Intelligent Analog Addressable Fire Alarm System

Product Description

Product Description
System introduction:

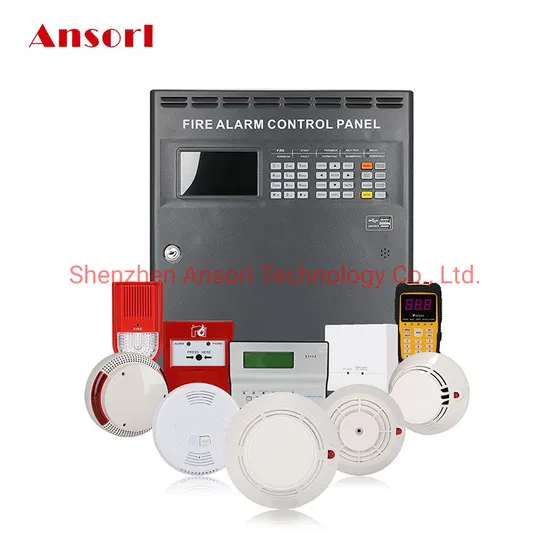

ANSORL -MN3010 fire alarm control panel (here in after referred to fire control unit) is a newgeneration of fire alarm control panel launched by ANSORL .
In order to meet the engineering design demand, the control unit is provided with bothlinkage and control functions.
It can support uses of other related products of the Company toform an integrated alarm and linkage control system, which is perfectly suitable for the application of small and medium-sized fire alarm and firefighting and linkage integrated control system.
The fire alarm linkage control system is widely used in small and medium-sized firefighting engineering, such as high-grade office building, residence community, department store, gymnasium, exhibition room, library, workshop, supermarket and hotels.
Wiring Diagram:
Product Features:
1. Adopts the latest generation of high-speed microprocessor. Data processing rate and data
storage capacity reach 100-fold and 1000-fold increase, respectively, compared to traditional
technologies.
2. MN3010 is provided with 4.3" color display screen (LCD), with a display resolution of
430×272.
3. The operation interface imitates Windows menus and window interfaces and is almost the
same as the computer operating and using habits, thus facilitates the learning.
4. Operation and control are flexible and convenient through the standard USB-interfaced
computer keyboard and mouse + the panel buttons are used as field programming devices.
5. T9 pinyin input method is provided and texts can be input easily and freely.
6. Use smart U disk (optional), which can be used to copy or restore setup file and historical file
of the system, thus facilitating the system maintenance.
7. It adopts the non-polarity two-bus intelligent alarm linkage pattern and can connect 324
intelligent detectors or intelligent modules at most. The addresses of module detectors can
be mix-programmed (optional 1-324).
8. It supports interconnection of 20 MN3010 control units and the maximum system capacity
after networking reaches 20×324=6480 (alarmpoint).
9. The maximum capacity of linkage control unit of a single equipment: 10 points.
10. The system has the function of recording operation history: 1000 pieces of historical fire
alarms, historical requests, historical feedbacks, historical faults and historical operations,
respectively.
11. The user may customize the equipment type, which can facilitate the system integration.
12. It has the modular manual single-point start/stop functions, which can facilitate field
debugging and testing.
13. It has the single-point detector/module testing function, the detector working status and test
data are clearly displayed.
14. The system is provided with a dedicated mini-printer as standard, which is used to print
various operating statuses of the system immediately.
15. It can be accessed with area indicating panels, building indicating panels and floor indicating
panels, which will extend display information of the control unit to corridor and other locations.
16. It can be connected with PC to achieve city networking.
17. The system carries out the hierarchy management of multi-level users and the users of
different levels are granted with corresponding operating system permissions, which is
convenient for system management.
18. It is possible to update the system on field or remotely to ensure the system operates stably
and reliably.
