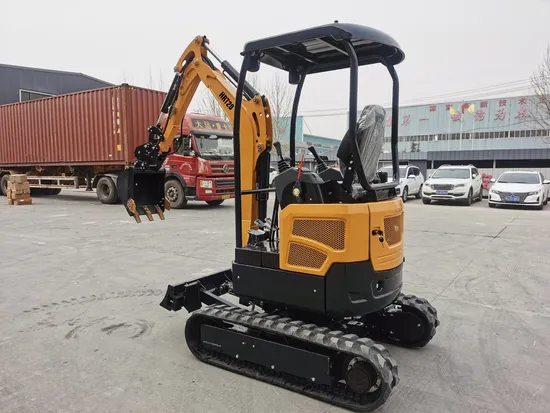

Portable Compact Mini Excavator with 1-Ton Operating Capacity

Portable Compact Mini Excavator with 1-Ton Operating Capacity

US$5,000.00
1-4 unit
US$4,000.00
5+ unit

Basic Info.

Model NO.
HR 20
Type
Wheel Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.07
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine
Euro V /EPA
Swing Speed
0-9
Gradeablity
35
Maximum Bucket Digging Force
18
Maximum Arm Digging Force
11kN
Hydraulic System Pressure
21.5MPa
Machine Weight
2000kg
Axle Base(Track Length on Ground)
1230mm
Min.Ground Clearance
150mm
Maximum Digging Height
3700mm
Maximum Digging Depth
2400mm
Maximum Vertical Digging Depth
2025mm
Maximum Digging Radius
4040mm
Minimum Swing Radius
1610mm
Specification
3555mm*1300mm*2290mm
Trademark
HIGH RICH
Origin
China Shandong
HS Code
84295212
Production Capacity
1000pices/Year

Packaging & Delivery

Package Size
3555.00cm * 1300.00cm * 2990.00cm
Package Gross Weight
2000.000kg

Product Description

Product Description
1. Versatility: Crawler excavators are highly versatile and can be used for a variety of tasks, including digging, lifting, demolition, and more. They are also suitable for a wide range of terrains, including uneven or slippery surfaces, making them ideal for construction projects of all kinds.
2. Stability: Thanks to their low center of gravity and wide tracks, crawler excavators provide exceptional stability. This allows operators to work more safely and efficiently, even on steep or uneven terrain.
3. Power and Performance: Crawler excavators are designed to deliver high levels of power and performance. They typically have more digging force and lifting capacity than other types of excavators, making them ideal for heavy-duty construction tasks.

4. Accessibility: Because of their low profile and compact size, crawler excavators can access tight spaces more easily than other types of construction equipment. This makes them ideal for use in urban areas or other confined spaces where maneuverability is essential.
5. Durability: Crawler excavators are built to last and can withstand harsh operating conditions, including extreme weather, rough terrain, and heavy loads. This means that they require less maintenance and downtime than other types of construction equipment.

1. Spacious cab:
The new and enlarged driver's cab features a new interior design, a spacious and bright view, and a user-friendly front shift mechanism.

2. Dynamical system:
The turbocharged exhaust engine has sufficient power reserve, and the highly compatible hydraulic system can fully utilize the power of the starting engine, saving more fuel.

3. Engine:
The excavators are equipped with diesel engines that typically have enough power to support digging, loading, and other work.

4. Tire and walking system:
The excavators use tire walking system, and the design and quality of tires are directly related to the stability and driving performance of the machine.
ENGINE
Emission Standard Euro V /EPA
Make KUBOTA
Model D1105
Power /Rotation speed 14kw(19HP)@2000rpm
Number of cylinder 3
TRACK SYSTEM
Maximum Travel speed 2.5/3.5km/h
Width of track shoe 230mm
Number of track shoe per side 38pcs
Number of upper roller per side 1
Number of bottom roller per side 3
PERFORMANCE PARAMETER
Standard Bucket capacity 0.07m³
Swing speed 9 rpm
Max. Grade ability 35°
Maximum Bucket digging force 18KN
Maximum Arm digging force 11KN
Hydraulic system pressure 21.5Mpa
Machine weight 2000kg
MACHINE SIZE
Overall dimension (L*W*H) 3555mm*1300mm*2290mm
Axle base(Track length on ground) 1230mm
Track gauge 760mm
Min.Ground clearance 150mm
Swing radius at tail 650mm
WORKING RANGE
Maximum Digging height 3700mm
Maximum Dumping height 2440mm
Maximum Digging depth 2400mm
Maximum Vertical digging depth 2025mm
Maximum Digging radius 4040mm
Minimum swing radius 1610mm
Maximum Lifting height of blade 240mm
Maximum Cutting depth of blade 270mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°
