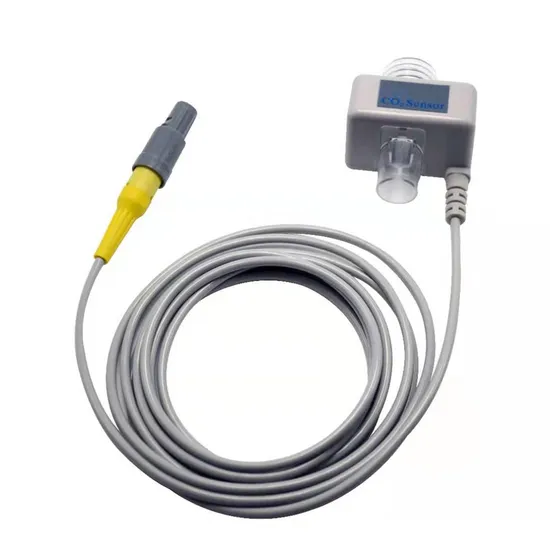

Capatible Respironics Capnograph Sidestream Etco2 Gas Sensor
| US$200.00-500.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
sidestream
Certification
CE, FDA, ISO13485
Group
All
Calibration
No Need
OEM
Yes
Compatible
Main Brands Respironics
Technology
Latest Generation of Dual-Channel Ndir
Transport Package
Box
Specification
ISO13485, CE
Trademark
WINPORT
Origin
China
HS Code
90181930
Production Capacity
10, 000PCS/Year
Product Description
ETCO2(End-Tidal Carbon Dioxide)technology for mainstream CO2 monitoring PRODUCT FEATURES: Ideal for non-intubated patients Dual wavelength ,proprietary sample cell protects internal ndir components from contamination Low sampling rate down to 50ml/min Common connector allows easy exchange between mainstream and sidestream monitoring Robust and long life pump reduces periodic maintenance No calibration required Private label option TTL/RS232,LEMO 8 pins/DB9 Unique accessories & supplies for all patients| Transducer Type | Sidestream CO2 Sensor |
| Sample Rate | 50 mL/min, ±10mL/min. |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts |
| Initialization Time | Capnogram displayed in less than 4 seconds full specifications within 2 minutes |
| CO2 Measure Range | 0 - 114 mmHg 0 - 15% 0 - 15.2kPa |
| CO2 Resolution | 0.1 mm Hg 0 to 59 mm Hg 0.25 mm Hg 60 to 114 mm Hg |
| CO2 Accuracy | 0 - 40mm ±2 mmHg 41 - 76 mmHg ±5% of reading 77 - 114 mmHg ±8% of reading Above 80 BPM ±12% of reading |
| CO2 Stability | Drift over four hours shall not exceed 1 mmHg maximum Accuracy specification will be maintained over a 120-hour period |
| Sampling Frequency | 100 Hz |
| Respiration Rate Range | 2 to 150 Breaths Per Minute (BPM) |
| Respiration Rate Accuracy | ±1 breath |
| Compensations | Automatic Barometric pressure 400 mmHg to 800 mmHg Operator selectable O2, N2O, He and agent compensation |
| Calibration | No routine user calibration required. |
| Voltage Requirements | 5.0 VDC ±5% |
| Power Consumption | Less than 1.2 Watts typical (Steady State) Up to 2 Watts maximum on power up (Warm up) |
Interconnection | Standard Pin out: VA 5.0V Shield Shield DGND Digital return VSRC 5.0V TxD Serial data from Sensor RxD Serial data from Host AGND Analog return SYNC Unused |
| Data Interface | RS232, bi-directional, 19200 baud rate, standard N-8-1. |
| Data Output | CO2 gas concentration(mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. Gas and barometric pressure compensated when supplied by host. |
| Temperature and Humidity | Operating: 0 to 45ºC, 10 to 90% RH, non-condensing Storage: -40 to 70ºC, <90% RH, non-condensing |
| Water Resistance | IPX4 - Splash-proof (sensor head only) |
