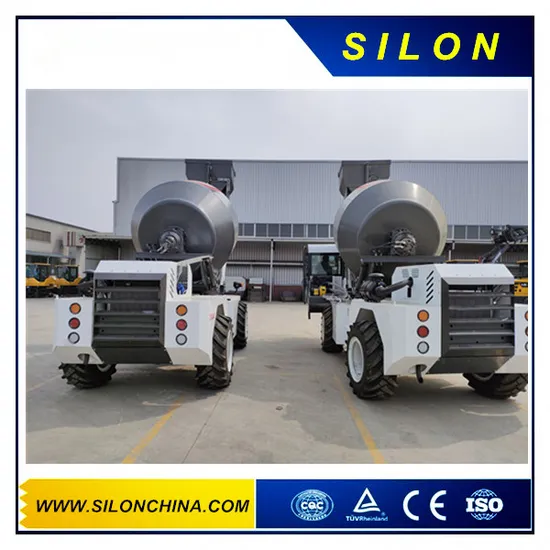

Self Loading Concrete Mixer Truck (1cbm2cbm 3cbm 4cbm)

Product Description

Product Description
1) 4X4 WD Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
2) Specially-made hub reduction axle on front/ rear axles, flange connection gearbox. Rear axle, oscillating(+-10°) Tyre:1680-20 3) Two water supply system, from external water feeding, can be directly into the drum or water tank. The total capacity of two connected water tanks positioned opposite is 612L Visual flowmeter, the water intake of the roller by hand-control. 4) Double-cone drum with double-spiral mixing screws and convex bottom. The Geometrical volume of drum is 5800L The rotation speed of Drum is 15r/min. Drum rotation by means of a gear pump hydraulic motor, hand control valve in operating room and the behind of mixer machine. Unloading chute by means of one adjustable handle to control tilt. As a standard configuration, we can provide a chute extension unit. 5) Loading arm can be equip with weighing sensor, Loading device with grab bucket and lifting arms controlled by double-acting hydraulic cylinders. Manual control of the feed inlet has a standard prompt function. Capacity:700L Times:5 6) Fuel tank: 200L Total hydraulic system capacity:200L Engine oil:16L
Product Parameters

2.0m3 (rotating) Concrete Mixer Truck
Diesel engine	Engine Model:Yuchai engine(78kw) options
		3850ml--4 cylinder inline
	Injection	Direct injection ,mechanical control
	Cooling system	Water--cooling,Dry air filter
	Max power	78kw
	Max torque	330nm@2400 r\ minute
Electrical system	Alternator	28V--1500Wa (53.5A)
	Battery	2*12V--60AH (272A)
	Road Lighting System
Steering System:	2 wheel steering, the steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels
4*4 Four-wheel drive	Hydraulic torque converter,open hydraulic gear pump,reverse gear control device.Control "working speed"and "moving speed"
	Speed:
	3 forward gears	2 reverse gears
	The first gear: 0--7km\hour	0--7km\hour
	The second gear: 7--20km\hour	7--20km\hour
	The third gear: 20-25km\hour
Axle	Front axle, steering , Wheel side deceleration Axle, the axle is equipped with a planet reduction gear
	Rear axle ,Swing ( ± 28° ) , the axle is equipped with a planet reduction gear
Tires	Tyre:20.5-16 thick semi-solid, max load:AD2925kg,350kPa, RIM:W13
Brake	The internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.Negative pressure type parking brake, the front axle is equipped with an internal hub.
Water Supply System	"Self-priming" 24v large capacity pump,with fast absorption function.
	Max flow:	90L\minute
	Two water tanks connected with each other and opposite layout, Total capacity	2*260L
	The water intake of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display screen of the operating water.
	Sit on the side of the driver's seat to enable the pump
	Equipped with high pressure pump to flush vehicle
Mixing And Unloading	Double cone cylinder with double spiral stirring screw and middle convex bottom
	Drum geometric capacity:	2810L
	Drum rotation speed:	15r\minute
	Concrete Production:	2.0cbm\tank
	The counterforce rack mounted on the ball saddle can be hydraulically rotated at 270 o and automatically locked by a hydraulic brake
	The rotation of the roller is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump.
	The roller is raised to a horizontal position by 2 double acting jacks
	Removable chute can be guaranteed to be unloaded directly through the hopper. It can rotate at 270 o , but can not be synchronized with the tilting operation of the mixing drum Removable chute can be guaranteed to be unloaded directly through the hopper.
	As a standard configuration , 2 chute extensions are provided.
Equipment Hydraulic System	Gear Pump:	PERMCO Brand
	Maximum Flow:	63\50L\minute
	Maximum Pressure:	16MPa
	3 handle multi-function joystick Aluminum heat exchanger for cooling hydraulic oil Open oil inlet,hydraulic oil filter can be replaced from outside The loading arm is equipped with an automatic weighing sensor, a double acting loader lifting and resetting the cylinder, manual control of the feed port has a standard prompt function
Load
	Capacity:	400L
	Be filled with 4 times
Operating Room	Closed operating room with heating\cooling system inclined front window. Humanized seat with flexible suspension and height adjustment function
Maintenance filler	Fuel tank:	160L
	Total capacity of hydraulic system:	160L
	Machine oil:	13.6L
Weight	Operating weight:	6080kg
	Maximum total weight:	11080kg
	Maximum load weight:	5000kg
Overall dimension	6840*2450*2800mm

Detailed Photos
YUCHAI Engine Makes the Machinery Powerfull and easy for maintance , they have the serive agent more than 190 countries

Articulated Frame makes the machinery strong and easy for turning in the narrow jobsite
Closing Cabin with the air conditioner and hearter makes the driver comfortable , Big Space for easy control
Electrical Weighting system for customer easy to control the mix capcacity for the material ( sands, cement. water...ect)
Backview Color Monitor
Jocystick is easy for driver to control bucket
18/70-20 tyre is anti- slipe, more stable
Water Pump and Big radiator is make sure the water supply is fast and easy for temputure control
