Intelligent Automatic Qt 10 15 Cement Block Machine Hollow Cement Brick Forming Machine

Intelligent Automatic Qt 10 15 Cement Block Machine Hollow Cement Brick Forming Machine

US$39,000.00-45,000.00 1 Set (MOQ)

Basic Info.

Model NO.
QT10-15
Certification
CE, ISO
Customized
Customized
Automatic Grade
Semiautomatic
Type
Vibration Molding
Model No.
Qt10-15 Paving Brick Machine
Voltage
220-440V
Pallet Size
1150X900mm
Rated Pressure
21MPa
Vibration Force
100kn
Host Machine Power
44kw
Transport Package
Standard Export Packing for 20/40 FT Container
Trademark
weda
Origin
China
HS Code
8474802000
Production Capacity
120sets/Month

Packaging & Delivery

Package Size
3500.00cm * 2300.00cm * 2930.00cm
Package Gross Weight
100000.000kg

Product Description

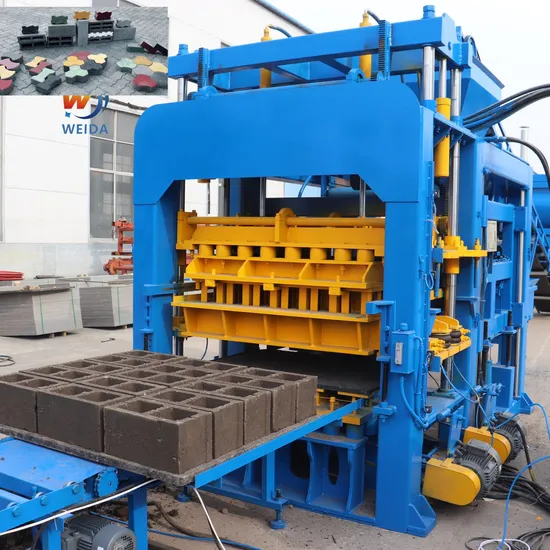

Intelligent automatic qt 10 15 cement block machine Hollow Cement Brick Forming Machine

Product Description

SPECIFICATIONS FOR QT10-15 stock brick making machine
Model QT10-15
Rated pressure 21Mpa
Dimension 3500x2000x2930mm
Forming Cycle 15-20s
Vibration form Platform vibration
Weight 10000kg
Working area 2000 sq.m
Pallet Size 1150x900mm


1)QT10-15 stock brick making machine Production Capacity
The production capacity depends on this forming machine and it is also the essential part of the whole production line.
You can change moulds on this parts to make different shaps of colored paving blocks, hollow bricks, and curbstons.
NO
Size(LXWXH)
Reference photos Pcs/Mould Pcs/Hour Pcs/shift
1 400x200x200mm
10 1500-1800 12000-14400
2 400x100x200mm
18 2700-3240 21600-25900
3 230x110x70mm
40 6000-7200 48000-57600
4 200x100x60 color paving brick
32 4800 38400
5 S paver blocks 20 3000 24000

Our Advantages
2) Programme PLC with motor electronic parts for stock brick making machine
• The process is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Germany Siemens Brand .
• The electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .
• about the switches ,we will use France brand or China CHNT
Installation Instructions
3)Automatic Paving brick machine details on client factory
• Rakes in several rows make sure raw materials fed well-distributed.
• Hydraulic components we use Taiwan Yuken famous brands.
• The demoulding synchronizer avoids the damage to concrete products.
• The vibration system contain two part ,one is up-moild vibbration box ,it is electricity motor to
supply the power for up-mouldvibration box. And the down moulld ,there have one big vobration .
when the scatter material work finish ,the hydraulic power with the two vibration power will assure
the good quality for product
4)In client factory and exbitions:

Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.
With RMB 16 million investment and 53,000square meters area, We are always developing good and realiable machinery with international standards to meet clients demands(people-oriented, leading technology, winning quality, and serving user ). We had exported to more than 100 countries. We have more than 60 technician to ensure superior installations and after sale service to assist clients to install the machine and perfrom the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation. we are 24 hours service on you!
Thank you !
