Basic Info.
Certification
CE, RoHS, GS, CB, SASO
Water Purification Efficacy
Straight Drink
Water Temperature
Cold & Hot
Descaling Function
Descaling Function
Pipe Design Rate
Self-Cleaning
Product Name
Standing Water Purifier
Function
Hot Water Cold Water Normal Water
Voltage
220-240V~/110-127V~
Cooling Power
Compressor/Electric :90W/75W
Heating Capacity
5L/H, 85-95 Degrees Celsius
Compressor Cooling Capacity
2L/H, 5-10 Degrees Celsius
Electric Cooling Capacity
0.75L/H, More Than 15 Degrees Celsius
5 Stages Filters
PP+Udf+CTO+RO+T33
6 Stages Filters
PP+Udf+CTO+RO+T33+UV
7 Stages Filters
PP+Udf+CTO+RO+T33+UV+Alkaline Water
Transport Package
by Cartons
Specification
50.5*39*56CM
Production Capacity
15000/Month
Packaging & Delivery
Package Size
50.50cm * 39.00cm * 56.00cm
Package Gross Weight
10.000kg
Product Description
Product paramaters:
Model Number | IP-3502-3C |
Heating Power/Capacity | 550W / 5L/H,85-95°C |
Cooling Power/Capacity | 90W / 2L/H,5-10°C |
Related Voltage/Frequence | 110-127V ~50/60Hz |
220-240V ~50/60Hz |
Body materials | 1 mm Galvanized sheet iron side panel |
100% new ABS plastic |
Compressor Brand | Asbeila/ Danfu/ Anuodan/ LG |
Compressor Warranty | 3 years |
Plastic parts Warranty | 1 year |
Water Tank Type | Stretched water tank |
Water Tank Material | Standard SS304 |
Connection Type | Soft connection ( food grade silicone tube) |
Hot Tank Volume | 1L |
Cold Tank Volume | 3L |
5 or 6 Stages Filters | PPF+CTO+UDF+RO+T33+UV |
PPF+CTO+UDF+UF+T33+UV |
RO Membrane | 50/ 75/ 100 GPD |
E-CHEN Pump | Self-priming pump & Booster pump |
50/ 100 GPD |
Color | White and Black |
Brand | OEM |
G.W/N.W | 16kgs/14kgs |
Packing Size | 50.5*39*56cm |
Packing Material | Standard export color box |
Payment:
Payment method | 100% T/T (30% deposit and 70% balance should be paid before container loading or against copy of B/L ) |
Irrevocable L/C at sight |
Production time | 25-30days after deposit received |

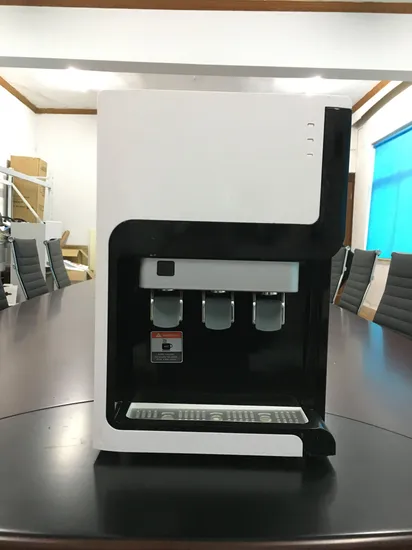

Photos:
FAQ Q: What are the elements of the filtration system?
A: Ultra Filtration system: PP filter+ UDF filter +CTO filter + UF membrane +T33 (+UV lamp)
Reverse Osmosis system: PP filter+ UDF filter +CTO filter + RO membrane +T33 (+UV lamp)
Q: What is the difference between Ultra Filtration system and Reverse Osmosis system?
A: The diameter of reverse osmosis membrane is 1% of the diameter of ultra filtration membrane, so the filtration degree of
reverse osmosis system is deeper than that of ultra filtration system, and the filtered water is purer and safer.
Q: How many stages of filtration system can I order?
A: 4, 5,6,7,8. It can be customizable.
Q:What is GPD mean?
A: GPD means"gallons per day", the capacity of water produced per day.
Q: How many GPD do you have?
A: 50, 75,100,200. For home use, 50/75 GPD is enough. For public place, like office, hospital, school, 100/200 GPD is more
suitable.
Q: What is the service life of filter elements?
A: PP filter: 3-6 months, CTO filter: 6-12 months, UDF filter: 6-12 months
UF membrane: 12-24 months, RO membrane: 24-36 months, T33 filter: 6-12 months
Q: Can I replace filter element myself? How?
A: Yes, the filter element we use is fast, convenient and easy to replace. If you are using it for the first time, we can teach
you how to replace it, you can count on that.
Q: What is the difference between Electronic cooling system and Compressor cooling system?
A: 1. The compressor type is cooled by refrigerant R304a, Cooling Power: 90W, Cooling Temperature: 6-10°C, Cooling capacity: 2L/H
2. The electronic type is cooled by electronic semiconductor, Cooling Power: 75W, Cooling Temperature: ≤15°C, Cooling capacity:
0.75L/H
So, compressor cooling type is faster, colder and more stable than electronic cooling type.
Q: What is the production time?
A: 25-30 days after deposit received.
Q: Can I put my own Logo on machine?
A: Yes, we are specializing in OEM order. Logo, carton design, color are all can be customizable.
Q: What is MOQ?
A: 120pcs for compressor cooling system, 238pcs for electronic cooling system.
Q: What is the guarantee term for product?
A: Compressor 3 years, Plastic parts 1 year and offer 1% of total order quantity spare parts for FREE CHARGE!
Q: What is the payment term?
A: 30-40% deposit and balance should be paid before container load.
