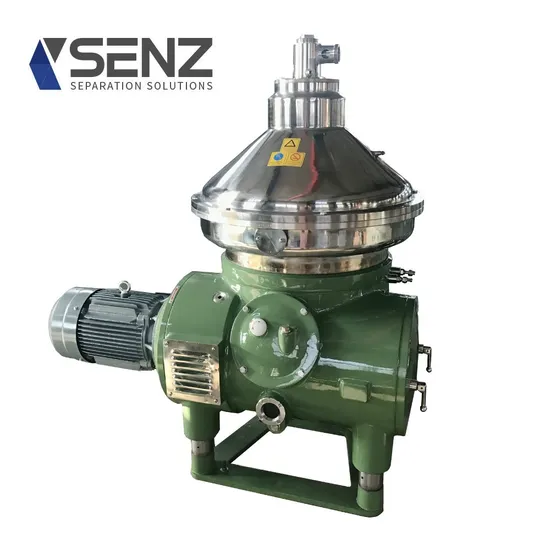

Popular Disc Olive Oil Separator Centrifugal Separator for Cooking

Popular Disc Olive Oil Separator Centrifugal Separator for Cooking

US$19,800.00 1 set (MOQ)

Basic Info.

Model NO.
DHY
Type
Separating Plant
Object
Olive Oil
Separation Mode
Sedimentation Type
Operating Type
Continuous Type
Installation
Vertical
Centrifuge Type
Disc Centrifuge
Pressure
Low Pressure
Condition
New
Control System
Variable Frequency Drive
Sanitary Degree
GMP/CE/ISO
After-Sales Service Provided
Field Installation, Commissioning and Training
Bearing
S-K-F, NSK as Optional
Application
for Olive Oil Extraction
Transport Package
Wooden Case
Specification
material: stainless steel
Trademark
SHENZHOU
Origin
China
HS Code
8421192000
Production Capacity
500sets/Year

Packaging & Delivery

Package Size
1000.00cm * 1200.00cm * 1100.00cm
Package Gross Weight
1000.000kg

Product Description

Description
Olive oil is a fat obtained from the olive (the fruit of Olea europaea;)a traditional tree crop The oil is produced by grinding whole olives and extracting the oil by mechanical or chemical means. It is commonly used in cooking, cosmetics, pharmaceuticals, and soaps and as a fuel for traditional oil lamps. Olive oil is used throughout the world.
SHENZHOU company has the specific equipment to separate and extract the olive oil.Our disc centrifuge specially used for separate water and sludge from olive oil,help you to get more clear olive oil.

Advantages:
1. Through fully automatic partial slag discharge and oil phase separation, the oil phase loss during the slag discharge process is almost 0
2. Closed feed and oil phase discharge reduce product contact with air.
3. Simple operation, PLC control to achieve continuous and automated production process.
4. Reduce downtime by enhancing self cleaning capability.

Max Speed (rpm )
6250
Plant Oil Capacity( L/h )
≥2000
Start-up time ( min )
≤8
Net Weight ( kg )
690
Dimension(Length×Width×Height)(mm)
1090×1100×1305
Voltage and Frequency
5.5kW, 50HZ, 380V

Tricanter centrifuge for olive oil separation:
Decanter centrifuge specially used for remove the sludge and water from the olive oil,help you get crude olive oil.

Bowl inner DIA.(mm)
450
Bowl length(mm)
1600
Bowl Speed (r/pm)
3000
Capacity (L/h)
5000-10000
Gross Weight (kg)
3340
Dimension (Length×Width×Height)
3271×1650×1040
Voltage and Frequency
22kW, 50HZ, 380V

1. Industrial design
Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.

2. Effectively ease resonance during rotating of bi-rotor
When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.

3. Thoroughly eliminate phenomenon of liquid ring stalling
Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks
The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.

5. Main bearing electrical components selection
We use origin bearings of international first-line brands such as S-K-F,F-A-G and so on.Electrical components mainly adopt ABB and Siemens

6. Constant temperature detection
All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.

7. Inter-change ability
Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.

8. Simplyand safely in bearing disassemblement
One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant's cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.
B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.
10. Main bearing BH device (patent design)
There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.

11. GSRL feeding device (potent design)
New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
