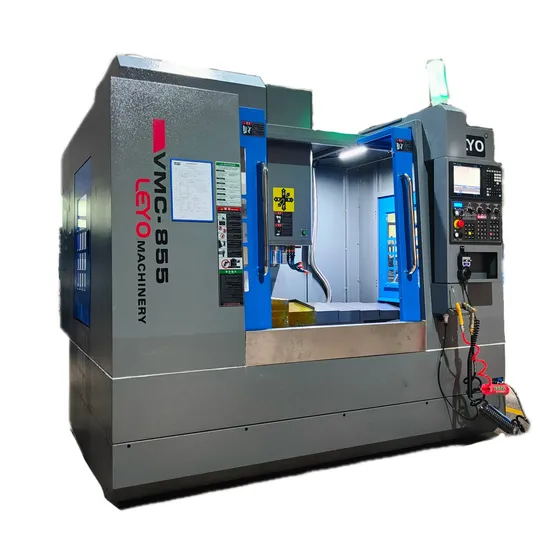

Leyo Vmc 855 Vertical Machining Center Vertical Machining Center Machining Center for Plastic Vmc855 Vertical

Product Description

Product Description LEYO Hot Sale Machining Center

LEYO VMC855 Vertical Machining Center Technical Parameters
Items		Unit	VMC855
X/Y/Z axis travel		mm	800/550/550
X/Y/Z rapid moving speed		m	48/48/48
X/Y/Z rapid feeding speed		m	20
Working table (L*W)		mm	1000x550
Working table max load		kg	600
Spindle taper hole			BT40
Spindle type*			Belt
Spindle motor power*		kw	11
Spindle speed*		rpm	10000
Controller*			Siemens
Tool magazine capacity *		T	24
X/Y/Z position accuracy			±0.005
X/Y/Z reposition accuracy			±0.003
Machine weight		kg	5100
Machine size		mm	2600*2376*2800
Tip:The asterisk is optional,and price is different. More requirement contact us.

LEYO VMC855 Vertical Machining Center description
X/Y/Z axis travel: 800/550/550 mm
X/Y/Z maximum moving speed: 48/48/48 m/min
X/Y/Z maximum cutting feed rate: 20 m/min
Table size(L x W): 1000*550 mm
Maximum payload: 600 kg
Spindle taper hole: BT40
Spindle motor power: 7.5/11 kw
Spindle speed: 8000/10000/12000 rpm
Three axis ballscrew rod:40*16 mm(C3 level)
Three axis linear guide:35/45/45 roller
Three axis slider:4/4/6 pcs
T-slot size: 18T*5*100 mm
Distance between spindle nose and worktable: 110-610 mm
Distance from spindle center to column track surface: 540 m
Positioning/Re-positioning accuracy: ±0.005/±0.003 mm
Machine size(L*w*h): 2600*2400*2800 mm
Machine weight: 5200 kg
Tool Magazine: 24 T Disc magazine
CNC Controller: LNC/SYNTEC/Mitsubishi/FANUC/Siemens

Working table: 1000*550mm Max payload: 600kg Front chip cleaning system
Controller-Japanese Mitsubishi M80B Customized handwheel/air gun/water gun
Controller-Japanese Mitsubishi M80B Customized handwheel/air gun/water gun
Electric control cabinet and Reid heat exchanger/ Spindle oil cooler
Taiwanese Hiwin screw rod 40*16mm and roller linear guide 35/45/45mm
Taiwanese Hiwin lengthened and widened flange type slider 4/4/6 pcs
FAQ:
1.What fields can vertical machining centers be used in?
VMC vertical machine tool machining centers can be widely used in industries such as automotive molds, component processing, aerospace, mechanical manufacturing, information communication, and medical devices.
2.What is the overall layout of the VMC855 vertical machining center ?
The VMC855 vertical machining center adopts a vertical frame layout, with columns fixed on the machine. The spindle box moves up and down along the columns (Z direction), the sliding seat moves longitudinally along the machine (Y direction), and the worktable moves horizontally along the sliding seat (X direction).




About LEYO
LEYO is a professional cnc machine manufacturer. It is located in Houjie Town, Dongguan City, Guangdong Province, China,2 km from Humen High Speed Rail Station,45 minutes drive to Shenzhen Airport and 90 minutes drive to Guangzhou Baiyun Airport.
Our main products are middle and high quality 3-5 axis cnc machine:CNC milling machines like small high-speed cnc milling machines, large gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal dual-use machining center, compact machining center,robodrill,drilling tapping machining center,gantry machining center, etc; and cnc lathe like turret machine,5 axis turning milling machine etc. And we also provide cnc solutions and can customize special machine tools according to customer needs.
These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other
international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high-quality cnc machines with good price.
About LEYO service
1. Customized service
1. Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, 4/5 axis cnc rotary table, 4 axis tailstock, tool setting instrument, measuring probe, chip conveyor, etc. Consumables like tools, tool holders, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
4. Fast delivery service
If you need it urgently, please tell me the expected delivery date, and we can arrange it according to customer needs. The fastest production time is 7 working days.
Recruitment of agents
The benefits of being LEYO agent:
1.Get better wholesale price.
2.Accumulating a certain amount of sales revenue can qualify for machine installment payments and additional commissions or gift.
3.And we will provide local customer resources for agents.We will invite customers to visit the agent company to check the machines.
Requirement:
1.Offer us your company name,web,shop information.
2.Have ability to import equipment from China and can provide local after-sales service to customers.
