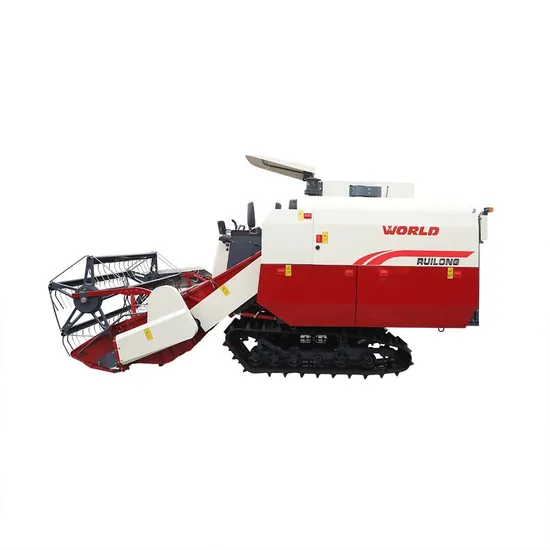

Combine Harvester with Small Grain Tank Ruilong 4lz-4.0e 88HP Agricultural-Machinery

Product Description

Feeding Capacity (kg/s)			4
Work Dimension L*W*H (mm)			4900*2890*2700
Weight (kg)			2900
Cabin/Sun shade			Sun shade
Engine Part	Model No.		Changchai 4L88
	Power/Speed (hp/rpm)		88/2700
	Fuel		Light Diesel Oil
	Fuel Capacity (L)		130
	Fuel Consumption(kg/hm2)		12~30
	Start		Motor Starter
Gear Box	ZKB65 made by WORLD Factory.
HST	40CC HST Imported from south Korea.
Walking Part	Rubber Track	Length of Ground Contact (mm)	1700
		Center Distance (mm)	1160
		Size(mm)	450*90*51
		Average Contact Pressure (kpa)	≤20Kpa
	Min. Ground Clearance (mm)		300
	Gear Shifts		Variable Sun-transmission 3 Shifts
	Walk Speed (Km/Hour)		Low:0~1.85 Medium:0~6.5 High:0~9
	Theoretical Work Speed (Km/Hour)		0.9-6.5
Harvesting Unit	Grain Lifter		Divider
	Working Width (mm)		2200
	Reel Bat	Dia. × Length (mm)	∮900×2028
		Gearshift Method	Constant Speed
		Adjusting Means	Hydraulic
	Stubble Height[Lift] (mm)		25cm or above
Threshing &Cleaning Unit	Threshing Mode		Axial Flow Type, Bullet Rotor
	Threshing Rotor	Type of Threshing	Beat Bar
		Dia. ×Length (mm)	∮620*2050
		Rotating Speed(rpm)	662/732
	Fan	Diameter	∮400
	Separating Type		Vibrating Sieves +Air Blow
	Area of Sieves (Lowe and Upper Sieves) (m2)		1.645
Grain-unload Unit	Grain Tank Capacity (M3)		1.4
	Grain Discharging Type		360 Degree Rotary Discharging Pipe
Alarm Units			Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger
Work Efficiency(hm2/h)			0.4~0.7
Crops			Rice, Wheat
Total Loss			Less than 2.5%
Breakage			Less than 1.5%
Impurity			Less than 1.5%

Jiangxi Yongji Agricultural Machinery Co., Ltd is a manufacturing company specializing in the design, production, and sales of agricultural machinery,has been deeply involved in the foreign trade industry of agricultural machinery products for many years,With high-quality products and rich professional services, it has established close and stable cooperative relationships with customers from more than 30 countries, including Indonesia, Malaysia, Bangladesh, Kenya, Tanzania, South Africa, Colombia, Peru, etc.
Our company has always been a high-quality supplier of spare parts for harvesters, tractors, and transplanters for brands such as World, Kubota, Yanmar, Lovol, Zoomlion, and Maxxi.
For example:Harvester
World harvester and spare parts: 4LZ-4.0E;4LZ-5.0E;4LZ-6.0P
Kubota harvester and spare parts : DC70;DC70G;DC60;DC95;DC105
Yanmar harvester and spare parts : AW72;AW85;YH1180
Zoomlion harvester and spare parts: 4LZ=4.0ZD(PL50;PL60)
For example:
Tractos:LOVOL;YTO;WORLD ;KUBOTA
Major market covers Southeast Asia, South Asia, South America, Africa, and other regions.
Our company is committed to the full organization of modern agriculture, If you need it ,Please call me.
