Saving Power 90% Acdc on Grid Solar Panel Air Conditioner

Product Description

12000BTU Acdc on Grid Solar Panel Air Conditioner Saving Power 90%

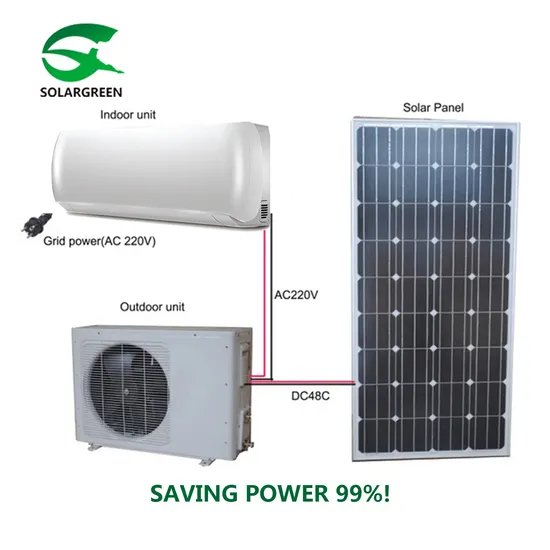

Hybrid AC/DC On grid solar air conditioner : the system priority consume DC power from solar PV
panel to supply fan motor and compressor of outdoor unit directly without any extral
inverter ,controller or battery . and then outdoor unit give power and signal to start indoor
unit .
This hybrid system is special designed for biggest operation air conditioner by solar
power in strong sunlight place when daylight , during sunlight Peak hours , it can save up
to 90% and more . this hybrid system must connect 220V city power and is not designed
for off-grid operation .
Product Details
Product Introduction

1.ACDC Grid Solar Air Conditioner(9000BTU-24000BTU)
2.when air conditioner dont use, still can work as a solar generator ,provide power to other appliances
3.Supreme high efficiency rating reach to SEER35
4.Nearly dont use power in day time.


Product Parameters

On grid PV Solar Air-Conditioner(without panel and bracket)
Power Supply:208~240V,50/60HZ
Model No.			KF(R)-26GW/NH	KF(R)-35GW/NH	KF(R)-52GW/NH	KF(R)-72GW/NH
		Ton	0.75ton	1ton	1.5ton	2ton
		HP	1HP	1.5HP	2HP	3HP
Performance
Capacity	Cooling	Btu/h	9000	12000	18000	24000
		W	2600	3500	5200	7200
	Heating	Btu/h	10000	13000	20000	27000
		W	2800	3700	5400	7900
Noise	Indoor	dB(A)	≤40	≤42	≤44	≤46
	Outdoor	dB(A)	≤50	≤52	≤55	≤58
Air Circulation		m³/h	450	550	750	1050
Suitable Area		m²	10~15	12~25	20~35	25~45
EER		W/W	5.2	4.7	4.5	4.4
SEER		Btu/h/w	35	34	34	33
HSPF		Btu/h/w	12	12	13	14
Operating Range		C/F	16C-31C/5F-122F
Design pressure		PSI	550 / 340
Refrigerant Oil			VG74
Refrigerant		R410A
Compressor		TOSHIBA (ROTAY)
Liquid side/ Gas side			1/4"/3/8"	1/4" / 1/2"	1/4" / 1/2"	1/4" / 1/2"
DC Connection /Wire			MC4/AWG 10/12	MC4/AWG 10/12	MC4/AWG 10/12	MC4/AWG 10/12
Power Consumption
Rated Power Input		W	450	750	950	1250
Rated Current		A	2.05	3.41	4.32	5.68
Dimension
Indoor Unit	NET	mm	775*260*210	775*260*210	990*320*210	990*320*210
	Shipping	mm	840*325*265	840*325*265	1070*395*285	1070*395*285
Outdoor Unit	NET	mm	790*260*540	790*260*540	850*300*700	850*300*700
	Shipping	mm	910*370*610	910*370*610	950*400*750	950*400*750
Weight
Indoor Unit	Net/Gross	kg	11/13	13/15	17/19	19/21
Outdoor Unit	Net/Gross	kg	38/40	45/48	48/55	56/62
MAX SOLAR PANEL(OPTIONAL)			2x250W/36V	3x250W/36V	4x250W/36V	4x300W/36V

Product Details Show


Why Choose Us?

1.Reply your inquiry in 24Hrs
2.Feedback of complaint in 24Hrs
3.OEM/ODM are accepted
4.Exclusive agents in local country are welcomed
5.Providing professional technical advice
6. Supergreen Tech Co.,Ltd, is a professional manufacturer of solar products such as Solar lights, Solar air conditioner, Solar refrigerators, Solar pest control lamp and so on.
With CE certification and several patent technology, making sure that we can provide all of our clients the best user friendly products!
FAQ:
Q1. Can I have a sample order for Solar air conditioner?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 7-20 days, mass production time needs 3-6 weeks.

Q3. Do you have any MOQ limit for air conditioner order?
Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by Sea shipping. It usually takes around 1-2 months

Q5. How to proceed an order for solar air conditioner ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on air conditioner product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
Yes,we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will repair them and resend them to you or provide the new parts to replace and ship with new containers. And we can discuss the solution including re-call according to real situation.
