Farm Implements Disc Harrow for Farm Tractor

Product Description

JINMA TRACTOR
About US
Started in 1959 A national backbone tractor manufacturer Business of tractor manufacturing was started in 1969 (a history of nearly 60 years) Under Jiangsu Yueda Group Co., Ltd. A state-holding enterprise Main of the tractor production enterprises Product export to North America, Europe, South America, Africa, southeast Asia and the Middle East area about hundred countries and area, The export number is top one of same industry in china. About Disc Harrow

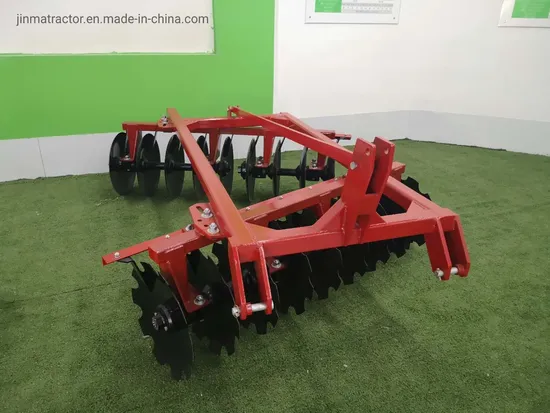

1BJX series hanging middle harrow :This series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning
away stubble of plants in light soil fi eld. With reasonable structure, strong ability to rake, durable, easy to use and maintenance, etc.
1BJ Double folding wings in hydraulic pressure offset middle harrow: This series are used for crushing clods after tillage in sticky heavy fi elds, the plough up, the scarifi cation before
seeding and cleaning away stubble of plants before tillage in the light soils. This harrow is featured by reasonable structure, high working effi ciency, strong capability into the soil and
scarifi cation,horizontal hinge, wide width task and narrow width transportation.

Type	1BJX-1.4	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width(mm)	1400	1600	1800	2000	2200	2400	2500
Working depth(mm)	140-160
Thickness of disc (mm)	4
Qty of disc(pcs)	12	14	16	18	20	22	24
Weight(Kg)	330	370	400	440	463	520	760
Matched power(hp)	35-40	40-45	45	50	55-60	65	75
Diameter of disc	560mm
Linkage	Three-pointed linkage

1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Farm tractor; Farm implements ; Farm equiment ; Spare parts.
3 What services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD;EURO
Accepted Payment Type: T/T,L/C,
4.Warranty Regulation of Product Quality
If Dealer sell the tractor with JINMA brand, The company will provide 24 months warranty period to main parts; sell with OEM form 12 months warranty period. The starting date depends on service policy.
