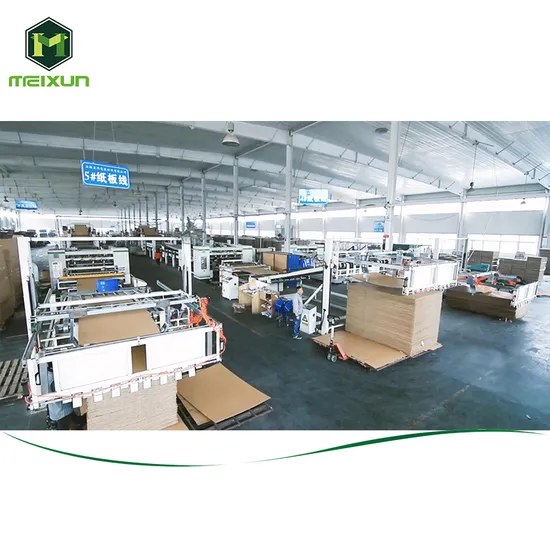

Efficient Honeycomb Paperboard Production Line with High-Speed Laminator
| US$1,000,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HF2400-100G
Sheet Former Type
Honeycomb
Paper Thickness
Normal Specification Paper
Automation
Automatic
Certification
CE
Customized
Non-Customized
Condition
New
After-sales Service
1 Year
Thickness
4-60mm
Speed
100 Meter/Minute
Heating
Steam
Material
Starch/ PVA
Transport Package
7 Conaniter
Specification
82000mm long x6500mm wide x5100mm high
Trademark
Meixun
Origin
China
Production Capacity
10 Sets/Year
Product Description
Main technical parameters of the equipment: Dive into the world of advanced technology with our equipment's key technical specifications, designed to optimize performance and efficiency.
| parameters | Specification | |
| 1 | Facial paper (width x roll diameter) | 2400mm×Φ1400mm |
| 2 | Effective width of finished paperboard | 1500mm-2400mm |
| 3 | Paper weight | 140g/M²-- 4 20g/M² |
| 4 | Adhesive | starch glue |
| 5 | Finished paperboard thickness | 4-15mm |
| 6 | Finished paperboard length | 800mm -- 3500mm |
| 7 | Maximum production speed of honeycomb paperboard | 100m/min (sheet thickness 6mm, honeycomb side length 4.5 mm, core paper weight 80-100 grams, surface paper weight 170grams, paperboard length 2500mm) |
| 8 | heating method | steam heating |
| 9 | Equipment installed power | About 230KW _ |
| 10 | normal production power consumption | About 230 KW* 5 0%- 6 0% |
| 11 | Total weight of equipment | About 187 T (including cadre parts) |
| 12 | Equipment Dimensions | 86000mm(length)×6500mm (width)×5100mm(height) |
| 13 | Direction of machine operation | based on customer's needs |
| 1 | Finished paper core pulling unit | Up and down brush roller conveying | Stable conveying and even pulling |
| 2 | Paper Core Drying Unit | 6 M steam heating, hot air circulation | drying, shaping |
| 3 | Facial tissue shaftless paper holder | Hydraulic shaftless paper holder | Convenient |
| 4 | Paper preheating 1 | Equipped with arc-shaped heating plate (saves steam, good preheating effect). | Steam heating , adjustable wrap angle |
| 5 | Automatic paper splicer | Width 2500 | outsourcing |
| 6 | Lower core surface glue coating unit | Anilox roller gluing, metering roller independent control | The upper rubber roller is finely ground, and the amount of glue is uniform and controllable |
| 7 | paperboard composite drying group | with deep hole drilling steam ironing board Composite with pressure roller and cotton conveyor belt | Less steam consumption, firm composite, controllable moisture content of paperboard |
| 8 | Paper preheating 2 | Equipped with diameter Φ 1000 preheating cylinder | Steam heating , adjustable wrap angle |
| 9 | Upper core surface glue coating unit | Anilox roller gluing, independent control of metering roller, the whole gluing part can be raised and lowered | The upper rubber roller is finely ground, and the amount of glue is uniform and controllable |
| 10 | paperboard composite drying group | with deep hole drilling steam ironing board Composite with pressure roller and cotton conveyor belt | Less steam consumption, firm composite, controllable moisture content of paperboard |
| 1 1 | paperboard cooling unit | Channel steel frame structure | |
| 1 2 | 2500 type servo slitting unit | 6 knives 10 lines, Equipped with an automatic waste suction system. | |
| 1 3 | Automatic spiral knife cross cutting machine | Alloy steel double serrated spiral knife | |
| 1 4 | 2500 type cardboard collecting unit | Big longmen Collection | |
| 1 5 | other | Main electrical producing areas : Taiwan , Japan , South Korea , domestic |
