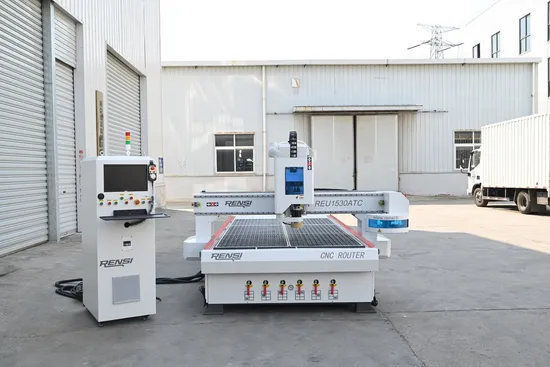

China Factory CNC Router 1530 Atc Woodworking Engraving Machine with Atc Spindle for Wood Door Engraving and Cutting

China Factory CNC Router 1530 Atc Woodworking Engraving Machine with Atc Spindle for Wood Door Engraving and Cutting

US$14,000.00-17,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
UT1530ATC
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Max Working Size
1500X3000X220mm
Table Size
1500X3100mm
Controller System
Ncstudio / Syntec
Processing Accuracy
0.05mm
Repeat Positioning Accuracy
0.01mm
Overall Weight
2200kg
Transport Package
Plywood
Specification
1530
Trademark
UNITEC CNC
Origin
China
HS Code
8465990000
Production Capacity
300PCS/Year

Packaging & Delivery

Package Size
225.00cm * 350.00cm * 190.00cm
Package Gross Weight
2200.000kg

Product Description

Detailed Photos
MAIN PARTS
Taiwan CSK Linear Guide Japan Shimpo Reducer
Heavy Duty Frame 7.5KW Vacuum pump
Delta Servo Motor and Driver HQD ATC spindle
Linear ATC with auto calibrator Ncstudio Controller

Sample Presentation
Sample Presentation
Product Parameters
Working Size 1500X3000X220mm
Table Size 1500X3100mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9KW Italy HSD ATC Spindle/HQD Spindle
Spindle Speed 24000rpm
Max Travel Speed 30000mm/min
Max Working Speed 20000mm/min
Motor Japan Yaskawa AC Servo Motor
Work Voltage AC380V 50HZ
Controller System Ncstudio / Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 2200KG
Overall Dimension 2250X3500X1900mm

Product Description
Applications and Materials:Furniture Industry: wood door,cabinet,classic furniture,panel furniture,etc Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc
Highlights Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running. Various of table styles makes convenient clamping materials and improves overall production efficiency Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality. Main configurations adopts imported accessories which will ensure the overall running performance Strict compliance with CE electrical standards for circuit design and production, and all Parts have safe and reliable protection device.
Certifications
Packaging & Shipping
Exhibition
Company Profile
Company Profile
Nanjing Unitec Technology CO., LTD is a dynamic and innovative manufacturer at the forefront of CNC Technology, which is located in Nanjing, Jiangsu Province, China.
Established in 2008, with a vision to provide cutting solutions and services, Unitec has been making significant strides in the markets of signmaking, metal working, woodworking, automative interior, package, etc . The company provides a wide range of products, such as CNC Router machine, CO2 Laser Cutting Machine, Fiber Laser Cutting machine and Digital Cutting Machine. And Unitec is staffed by a team of highly talented and dedicated professionals who are passionate about technology and committed to excellence.
Our company is proud to have a highly skilled talent team. The members of this team are all experts in their respective fields, with rich professional knowledge and practical experience. They are dedicated to innovation and continuous improvement, constantly striving to develop new technologies and products to meet the diverse needs of customers. With their outstanding technical capabilities and creative thinking, our company is able to maintain a competitive edge in the market and provide high-quality products and services.
With the rapid development of the company, Unitec established good relationships with famous suppliers, such as: Italy HSD spindle, Italy Colombo spindle, Japan Yaskawa servo motors, Taiwan Delta servo motors, Taiwan Syntec Controller, Taiwan HIWIN Linear guides, TBI Ball screw,etc .They work with Unitec teams tightly and guarantee the quality of our machines.
The company also provides comprehensive technical support and consulting services. Whether it's troubleshooting issues, providing training, or offering strategic advice on technology implementation, Unitec's experts are always ready to assist.
Under the guarantee of excellent quality, timely and efficient service, Unitec established a wide and systematic sales network worldwide. Our company's products are exported to more than 100 countries and regions around the world, such as Japan, South Korea, the United Kingdom, Sweden, the United States, Norway, Finland, Germany, and so on.
Unitec is committed to innovation and continuous improvement. The company invests heavily in research and development to stay ahead of the curve and bring the latest technologies to its customers. With a focus on quality and customer satisfaction, Unitec ensures that every product and service it offers is of the highest caliber.
With its strong reputation, innovative products, and excellent customer service, Nanjing Unitec Technology CO., LTD is poised to continue its growth and success in the years to come.
