Vegetable Medicine Pharmaceutical Vacuum Lyophilizer Freeze Drying Equipment Machine Dryer

Vegetable Medicine Pharmaceutical Vacuum Lyophilizer Freeze Drying Equipment Machine Dryer

US$7,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FD
Type
Complete Plant
Voltage
220/380V
Power
1.1KW
Customized
Customized
Capacity
1kg-500kg
Transport Package
Standard Export Packing
Specification
50kg-5000kg
Trademark
GY
Origin
China
HS Code
8419310000
Production Capacity
50kg-5000kg

Product Description


freeze chips processing plant Introduction:
This is the small and medium scale fruit & vegetable chips production line, the production process is simple, easy to operate. The production strictly in accordance with international standards of manufacturing process, end products meet the requirements of food GMP health conditions. The final processing technology and end products packaging form can be configured according to customer requirements.

Process Flow:
Fresh vegetable - Washing - Peeling - Cutting - Blanching / Color-protecting - De-watering - Frying / Vacuum frying / Hot air drying / Vacuum freeze drying - Packaging.

Model List:
Raw material
fresh vegetable
End products
vegetable &fruit chips
Processing capacity
50-5000kg/h
Drying methods
Frying / Vacuum frying / Hot air drying / Vacuum freeze drying
Terminal package
plastic bags, cans, etc.

Vacuum freeze drying technology is the most advanced technology for food dehydration processing at present. Compared with the common drying method, the freeze-dried food produced with this technology features long period of quality assurance, good re-hydration nature, good-looking color, good flavor, taste, shape and high content of nutritious components. The dried food basically remains unchanged in its volume and shape, it looks like sponge and has no shrinking. This kind drying technology can be widely used in process of vegetables, fruits, condiments, aquatic products, biological products, medicine, beverage and etc.

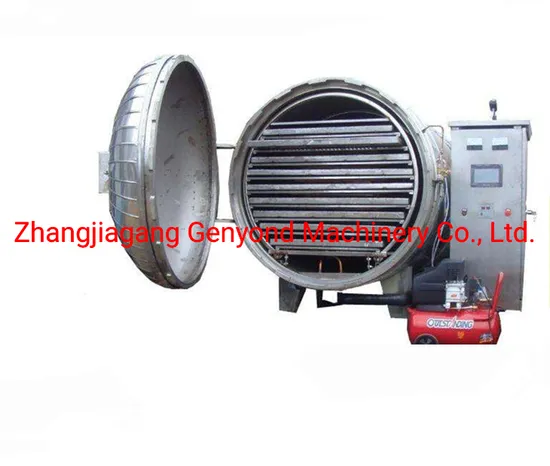

Working principle of vacuum freeze dryer
Instead of traditional vaporization dehydration method, the vacuum freeze drying technology is dehydrate products by sublimation directly from ice to vapor. During the Freeze drying process, the materials will be frozen to -18°c, then move into the vacuum drying tank for dehydration, automatic control system will set the vacuum and heating temperature according to the freeze drying cirve of each products to maintain the proper circumstances for FD processing. The materials stay in frozen status during the drying process and water vapor will be condensed on the surface of cold trap coils to absort the water out from the materials.
Application
The vacuum freezing and drying machine can be widely used in various fields, such as vegetables, fruits, condiments, seafood, biological products, medicine, beverage, specimen, etc.
Technology Parameter
Parameters
Model
FDGY-0.5
FDGY-10
FDGY-20
FDGY-50
FDGY-100
FDGY-150
FDGY-200
FDGY-280
Drying area
(m2)
0.5
10
20
50
100
150
200
275
Mean dehydrating amount (kg/h)
5-6
100
200
500
1000
1500
200
2750
Size of material tray
(m)
310×540×30
745×635×30
435×555×30
540×635×30
Number of material tray (pcs)
3
21
80
144
288
480
576
792
Size of pot
(M)
1.5×1.6×1.6
φ1.4×2.1
φ1.8×2.4
φ2.4×4.8
φ2.4×8.9
φ2.4×12.8
φ2.4×16.6
φ2.4×21.9
Operation vacuum
(pa)
13.3~200
26.6~200
Heating plate T
(°C)
Normal temperature~+120°C
Electric heating
(Kw)
2
21
40





Steam consumption
(Kg/h 0.7Mpa)



140
270
450
540
750
Cold load consumption
(Kw)
1.5
21.6
36
90
180
280
360
490
Installed power
(Kw)
6.5
55.8
104.5
41.2
69.7
92.5
117.5
125.5
