Boron Steel/65 Mn Spring Steel Agricultural Disc Blade 560*5mm
| US$15.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DH
Material
Stainless Steel
Power Source
Electricity
Weight
30kgs
After-sales Service
Available
Warranty
Available
Model
Harrow Disc Blade
Video Outgoing-Inspection
Provided, Not Available
Hardness
38-44HRC
Color
as Yours
Applicable Industries
Farms
Marketing Type
Hot Product 2023
Use
Farmland
Blade Material
65mn or Boron Steel
Thickness
3~12mm
Surface Treatment
Painting as The Color You Need
Certificate
ISO9001:2008
Feature
Feature
Package
Carton and Pallet
Place of Origin
Shandong,China
Transport Package
Iron Case
Specification
38-44HRC
Trademark
DIHE
Origin
Weifang City
HS Code
8432900000
Production Capacity
9999 Piece/Pieces Per Month
Packaging & Delivery
Package Size
130.00cm * 140.00cm * 110.00cm
Package Gross Weight
15.000kg
Product Description

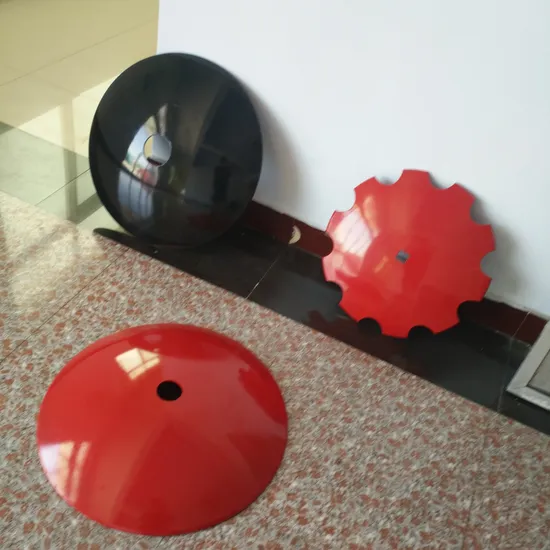

Boron steel/65 Mn spring steel Agricultural Disc Blade 560*5mmProduct Details as follows: 65Mn Material Plough Harrow Disc Blade
Main Features:
• Good Elasticity
• High Hardness
• Excellent Wear Resistance
• Short Delivery time
• Competitive price
Main manufacturing process:
• Cutting materials
• Heat treatment
• Pressure type
• Quenching
• Tempering
• Baking varnish
Main specifications:
| Common Specifications of Disc | |||
| Dia. | Concavity | Thickness | |
| MM | INCH | MM | MM |
| 255 | 10 | 12 | 3 |
| 305 | 12 | 19 | 3 |
| 330 | 13 | 25 | 3 |
| 355 | 14 | 38 | 3 |
| 410 | 15 | 38~50 | 3 |
| 430 | 17 | 57 | 3,4 |
| 460 | 18 | 38~60 | 3,4 |
| 480 | 19 | 57 | 3,4 |
| 510 | 20 | 44~63 | 3,4,5 |
| 535 | 21 | 63 | 3,4,5 |
| 560 | 22 | 60~85 | 4,5,6 |
| 585 | 23 | 75~90 | 4,5.6 |
| 610 | 24 | 75~95 | 4,5,6 |
| 660 | 26 | 86~115 | 5,6,7,8 |
| 710 | 28 | 100~130 | 5,6,7,8 |
| 760 | 30 | 120~135 | 6,7,8,10,12 |
| 810 | 32 | 120~140 | 8,10,12 |
| 910 | 36 | 120-200 | 8,10,12 |
| 960 | 38 | 120-200 | 8,10,12 |
chemical composition of our 65Mn steel
| composition | C | Mn | Si | S | P | Ni |
We devoted ourselves in supplying all kinds ofagricultural and parts machinery of light-duty or mid-duty or heavy duty models and hydraulic or mounted, opposite or offsetdesign.please find them as follow:
1.Disc harrow
2.Disc plow;
3.Furrow plow;
4.Cultivator;
5.Rotavator;
6.Potato planter, corn planter, wheat seeder;
7.Boom sprayer, spreader;
8.Potato harvester, peanut harvester;
9.Post-hole digger;
10. Mower, ditching ridger, ditching machine;
11.Disc blades, tines, and other accessories.
