Advanced Ground Earth Resistance Tester

Product Description

ADVANCED MULTIFUNCTION EARTH GROUND RESISTANCE TESTER

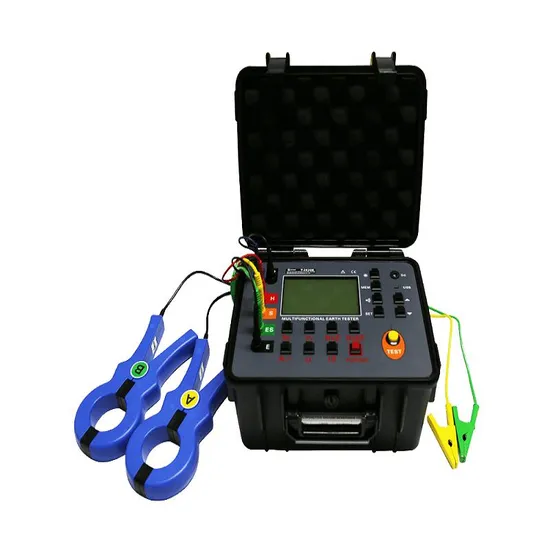

T-3630E multifunction earth ground resistance meter is composed of host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires and others. The large LCD display of host machine is with blue backlight and bar graph indicating that can be seen clearly. At the same time it can store 100 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, and alarm indicator, auto-shut down and with the functions like historical data access, reading, preservation, report forms, printing and so on.
FEATURES Accuracy 2%;
AC voltage 0-100V;
With gray backlight;
DC voltage 0-1000V;
With IP65 protection;
Recorder 500 sets data;
AC current measurement 0-1000A;
Soil Resistivity (ρ) 0.00Ωm - 9999kΩm;
Earth resistance range 0.01Ω - 30.00kΩ;
PARAMETERS

Electrical parameters Mechanical parameters Environmental conditions

Function	Measure grounding resistance, soil resistivity; Measurement of earth voltage, AC voltage, leakage current of AC current
Accuracy	2%
Power Supply	DC 6V(4.5AH battery, continuous standby for 300 hours )
Backlight	White screen backlight, suitable for dim places
Measuring Mode	Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement, selection method, double clamp method measure grounding resistance
Measuring Method	2/3/4 pole method: change-pole method, measurement current 20mA Max Selection method: change-pole method, measurement current 20mA Max Double clamp method: disconnect mutual inductance method, measurement current 1mA Max Soil Resistivity: 4-pole measurement (Wenner method) DC resistance: change-pole method AC current: mutual inductance method Earth Voltage: average rectification(between P(S)-ES)
Measuring Rate	AC current: about 2 times/second Voltage to ground: about 2 times/second Earth resistance, soil resistivity: about 7 seconds/time
Measuring Times	Over 5000 times (Short-circuit test, interval time should be at least 30 seconds)
Earth resistance range	0Ω - 30.00KΩ
Resolution	0.01Ω/0.1Ω/1Ω/10Ω
Soil resistivity range	0.00Ωm - 9999kΩm
Resolution	0.01Ωm/0.1Ωm/1Ωm/10Ωm/100Ωm/1kΩm
Earth Voltage Range	0 - 100V; Resolution: 0.01V
Clamp AC current Range	0 - 1000A; Resolution: 0.1mA
Test Voltage Wave	Sine wave
Test Frequency	128Hz
Short-circuit Test Current	AC 20mA max
Open-circuit Test Current	AC 40V max
Electrode Distance Range	set 1m-100m
Backlight	Yes
LCD display	108mm×65mm, 4-bit LCD display, gray screen backlight
Communication	USB Port
Data Storage	500 GROUPS
Alarm Function	Yes
Power Consumption	Standby: about 25mA Max(Backlight shut off) Boot 28mA Max(without backlight) Measurement: about 120mA Max(Backlight shut off)
Overload Protection	Earth resistance: between each interfaces of C(H)-E, P(S)-ES, AC 280V/3 seconds
Insulation Resistance	Over 20MΩ (between circuit and enclosure it is 500V)
Withstand voltage	AC 3700V/rms. (Between circuit and enclosure)
Standard	IEC61010-1 (CAT 300V, CAT IV 150V, Pollution 2), IEC61010-031; IEC61557-1 (Earth resistance); IEC61557-5 (Soil resistivity); JJG 366-2004(Grounding resistance meter) JJG 1054-2009(Clamp grounding resistance meter) IEC61326(EMC)
Dimensions (L×W×H) (mm)	277.2mm×227.5mm×153mm
Size of clamp(L×W×H) (mm)	101mm×27mm×214mm
Standard Test Wire	4 wires: each for red 15m, black 15m, yellow 10m, and green 10m
Simple Test Wire	2 wires: each for red 1.5m and black 1.5m
Auxiliary Grounding Rod	4 wires: Φ10mm×150mm Over 5000 times (Short-circuit test, interval time should be at least 30 seconds)
1000A current clamp(Optional)	2pcs :1 blue-black plug and 1 red-black. 50mm diameter,1000:1, 2m
Weight (kg)	Total weight: 8.05kg (including package) Tester: 2430g (including battery) Testing wires: 940g Auxiliary grounding rods: 935g (4pcs)
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to 70°C
Relative humidity	≤90%RH
