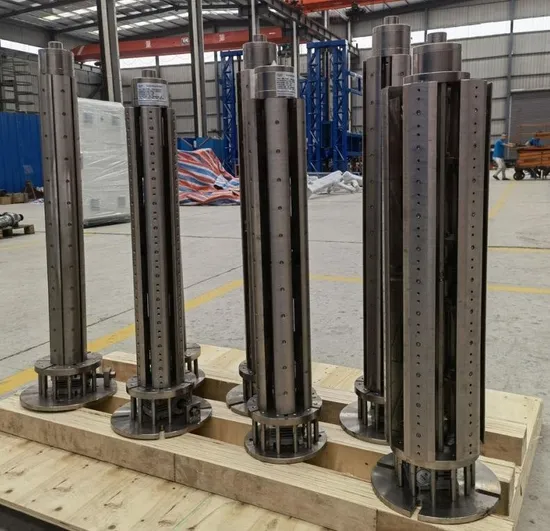

Steel Structure Expendable Winding Mandrel for Winding Machine
| US$3,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KTM125-225
Material
Carbon Steel
Name
Expanding Mandrel
Size
Customized
Usage
Transformer Coil
Control
Pneumatic or Servo
Expanding Range
125-225mm
Adjust Method
Manually
Structure
Umbrella Expanding
Load
Drive Shaft
Stiffness & Flexibility
Flexible Shaft
Axis Shape
Straight Shaft
Shaft Shape
Real Axis
Appearance Shape
Round
Transport Package
Sea Shipping
Specification
customized
Trademark
TRIHOPE
Origin
Shanghai, China
Production Capacity
5 Piece/ Week
Product Description
Transformer Coil winding machine Expandable Mandrel1.Application
This machine is applied for winding core with horizontal winding machine and vertical winding machine. The main specialty of the machine are good integrated, design in reason, high precision.
2. Main Specifications
| Model | Expending Range: mm | Max. Loading: KG | Effective length: mm | Nos. of Strutting | Mandrel Length: mm |
| KTM-125X4 | 125-175 | 300 | 800 | 4 | 1100 |
| KTM-175X4 | 175-225 | 500 | 800 | 4 | 1100 |
3.Remark
The machine can be designed and made by your request.
