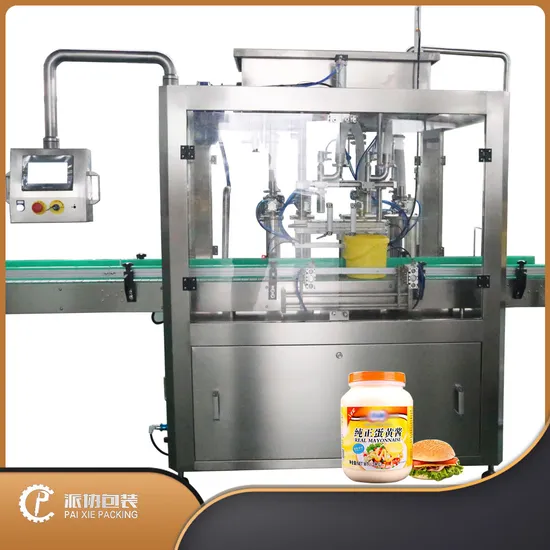

Factory Customizable Customized Paixie Automatic Chili Jam Sauce Filling Machine

Product Description

Product Description
Overview:This machine is used to fill various liquid, viscous liquid or thick liquid products, like cooking oil, lube oil, beverage, juice, sauce, paste, cream, honey, shampoo, detergent, pesticides, and Liquid fertilizer etc as long as it can flow. It adopts piston pump filling with servo motor driven which is more accurate and easy to adjust the volume. With rotary valve for thick or viscous liquid products and non-rotary valve for liquid products.
Main features:1. With PLC + human-computer touch screen control system. The PLC can save the parameters for later use. Operators do not need too much complicated operation.
2. Adopts Mitsubishi servo motor to drive piston pumps, with high speed and high filling accuracy; its also easier for adjusting volumes, only need to input the volume you want to fill from touch screen.
3. The filling nozzles can be with the function of anti-drip, anti-drawing, diving bottom up filling & bubble-kill etc according to the features of different products.
4. For hot filling, we make double jacket tank, which can be heated to keep temperature of products inside. Also with a mixer inside to stir it even.
5. There is a level controller in tank to control the pump to transfer product to the machine tank or stop transferring automatically.
Product Parameters

Product	Paste Filling Machine Production Line
Output	1500-6000BPH
Filling Volume	10-5000ml
Control	PLC and Touch Screen
Bottle Size	Customized
Cap Feeding	Elevator
Cap Motor	Magnetic Motor
Torquing Range	0-100N
Loading Way	Motor Pump Loading
Capping Type	Screw, Pressing, Crimping, etc
Bottle Type	Glass, Plastic, Metal, etc
Driving Motor	Servo Motor
Power	1.8KW
Voltage	220/380V, 50/60Hz
Machine Frame Material	SS304

Detailed Photos

Touch screen operation panelHuman-machine interface, parameter setting can be completed with one click and supports different languages. Bottle Feeding TableThe operator places the empty barrels on the workbench and, driven by the gear motor, correctly arranges the barrels to the intelligent filling machine. With flexible output channels, bottles of different sizes can be processed. Piston Pump Filling
SUS316L material, With sensor in each filling nozzle.If there is any problem in any nozzle, we can find it very fast from touch screen. Ours are long filling nozzles, so it can protect cylinder on top being damaged by products blocked in it.
Two different capacity piston devices
1.Easy Disassembly Three Way Connectors, No Dead Corner 2.Gurantee The Shut Off Accuracy And More Stably, And No Dead Corner
3.Sutiable For Thin To Viscous Liquid And Sauce Top Tank
1.The top tank is with round or semi round design no dead corner, more easy Cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for optionLarge barrel capping machineThe control system adopts the high-end electrical parts such as programmable controller I/O PLC module, which has reliable performance and low maintenance cost. Servo motor driving
Different from traditional air driving , paixie customize machine by servo motor , it is contributed to precision control and different volume change ,everything will be done by HMI adjustment Product Application
This production line is suitable for filling and capping semi-liquid products without or with small particles: such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc. Our Advantages

We'll change into your standard plug before shipping,such as American plug, UK plug, European plug...
Complimentary installation kit
