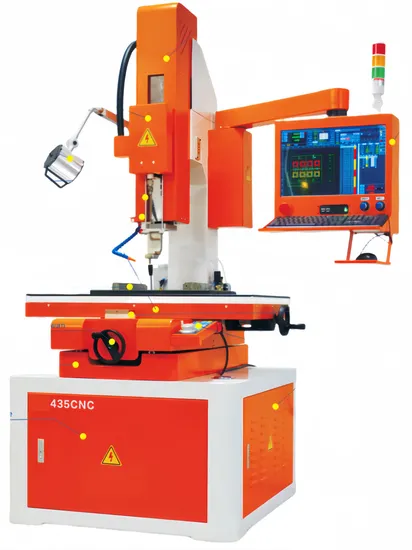

Professional 435CNC Powerful Processing with Technology Automatically Generate Processing Parameters and Automatically CNC Hole Discharge Machine
| US$6,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
435CNC
Application
Metal
Process Usage
CNC Hole Discharge Machine
Movement Method
Point to Point Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Transport Package
Customization
Specification
120*110*210cm
Trademark
Transtar
Origin
China
Product Description
Product Description1.Unigue independent intellectual property CNC system processing software, using the current mainstream Windows 7 operating
platform,industrial grade PC controller, supporting none.
2. Intelligent database management, equipped with a powerful processing technology database, input copper pipe diameter and
workpiece material, and automatically generate various processing parameters.
3. Without programming, directly read CAD files without the need for third-party software, automatically optimize and generate
machining trajectory paths, and provide multiple path direction choices.
4. Real time tracking of graphics, trajectories, and coordinates. Point graphics can read coordinate positions, and point coordinates
can be seen at specific positions in the graphics. Data can be read alternately at will.
5. There are no burrs on the surface of the workpiece, and the intelligent processing current pulse energy increment function.
6.Infrared laser detection function.
Detailed Photos
Product Parameters
| Product Parameters | Random Accessories | ||||
| Technical Parameter | 435CNC | Machine Weight (KG) | 660 | Terminal Clamp | 2 Sets |
| Workbench Stroke (MM) | 450*350 | External dimensions (CM) | 120*110*210 | Electrode guide nozzle (0.3/0.5/0.7) | one each |
| X - Stroke (MM) | 450 | Input Power (KAV) | 380V 3KVA | Copper tube (0.3/0.5/0.7) | Each tube |
| Y - Stroke (MM) | 350 | Maximum processing current (A) | 30 | Blocklet | 20 |
| Z1 axis servo up and down stroke (MM) | 430 | Voltage setting (range) | 3 | Parallel block | 2 pieces |
| Z2 axis auxiliary up and down travel (MM) | 320 | Discharge pulse width (segment) | 0 - 99 | Built-in flushing device | One set |
| Z3 axis guide nozzle shaft up and down stroke (MM) | / | Rest frequency (segment) | 0 - 99 | Sensor | A Set |
| Workbench sink area (MM) | 945*550 | Encoder | Wanhao | Allen Key | A Set |
| Maximum Machinable Workpiece (MM) | 320 | Operating system | Windows 7 | One Word Cross | Each one |
| Machining hole range (MM) | 0.15 - 3.0 | Parameter reading method | Database | Bucket (18 liters) | 2 |
| Maximum working load (KG) | 200 | ||||
