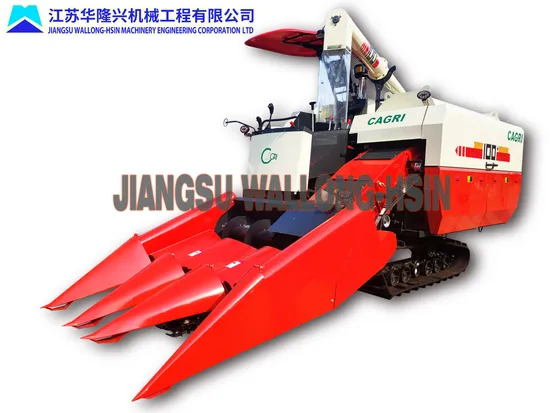

Corn Harvesting Machinery Corn Header Combine Harvester Axial Flow Large/ Small Tank Harvester
| US$21,000.00-23,000.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
CAG-100+
Application
Corn
Power Source
Diesel
Harvest method
Cutting
Drive Type
Hydraulic Transmission
Transmission
Belt
Portable Harvester Type
Self-Propelled Rubber Track Full Feed
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Warranty
12 Months
Feed Capacity
2.5 Kg/S
Fuel Tank Capacity
60 L
Rated Power
61 / 75 / 88 HP
Cutting Width
2000 mm (2200 mm Optional)
Grain Tank
250 Kg
Fuel Consumption
18-28 Kg/Ha
Rubber Track
450 X 90 X 49 mm
Transport Package
Complete in Container
Specification
4680mm*2300mm*2605mm
Trademark
Cagri
Origin
China
HS Code
843351009
Production Capacity
10000 Pieces/Year
Product Description
Product DescriptionOur corn header can be mounted in various models of combine harvesters, ranging from big grain tank axiel flow, small tank daul threshing harvester.
Our corn headers offer excellent picking ability in both standing and down corn, increasing grain savings in all circumstance. What's more, they offer unrivalled ease of servicing to ensure they are ready for work in no time at all, and perform in all harvesting conditions.
Detailed Photos
Product Parameters
| Model | CAG-100+ | ||
| Type | Crawler Self-propelled Full-feed | ||
| Engine | Type | Water-cooled, 4stroke, Direct Injection, Turbocharged Vertical Diesel | |
| Rated Power(kw/ps/rpm) | 75 / 102 / 2400 | ||
| Starting system | Electric Start | ||
| Dimensions | Overall Length(mm) | 5080 | |
| Overall Width(mm) | 2600 | ||
| Overall Height(mm) | 2705 | ||
| Feed Capacity(kg/s) | 5 | ||
| Fuel Tank Capacity(L) | 210 | ||
| Fuel Consumption(kg/ha) | ≤30 | ||
| Min. Ground Clearance(mm) | 330 | ||
| Operation Weight(kg) | 3350 | ||
| Driving System | Crawlers | Rubber Track | 500 x 90 x 53(550 x 90 x 53 optional) |
| Track Gauge | 1150mm | ||
| Transmission | HST Capacity | 45cc | |
| Working Speed(km/h) | Lower: 0-4.45 | ||
| Medium:0-6.07 | |||
| High: 0-7.6 | |||
| Cutting | Pickup Reel Diameter(mm) | 900 | |
| Height Adjustment | Hydraulic | ||
| Cutting Width(mm) | 2200(2000/2500 Optional) | ||
| Threshing Cylinder | Quantity | 1 | |
| Diameter x Length(mm) | Φ640x2041 | ||
| Grain Tank(m³) | 250kg | ||
| Grain Unloading | High Positioned, Swing Type Discharge Auger | ||
| Operation Effeciency Estimated Value (ha/ hour) | 0.4-0.8 | ||
| Stalk Chopper | Optional | ||
Packaging & Shipping
