CE Certification and ISO Ceritification Automatic Plastic Injection Molding Machine
| US$18,000.00-565,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM2000
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countreis
Showroom Locate
Malaysia, Russia, Turkey, Uzbekistan
Condition
New
Injection Weight
9105g PS
Space Between Tie Bar
1620X1480 mm
Machine Weight
128 Ton
Transport Package
Standard Package
Specification
15.60x3.50x4.00
Trademark
HIGHSUN
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year
Product Description

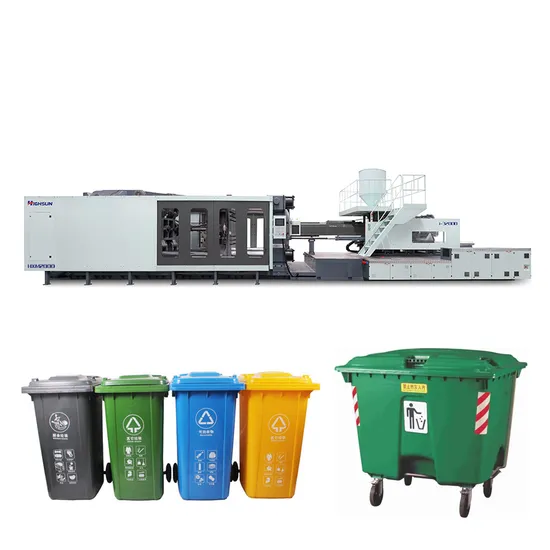

1.Picture| MODEL: HXM2000 | ||||||
| TECHNICAL PARAMETER TABLE | A | B | C | D | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 130 | 140 | 150 | 160 |
| SCREW L/D RATIO | L/D | 23.7 | 22 | 20.5 | 19.2 | |
| INJECTION CAPACITY IN THEORY | cm3 | 8627 | 10005 | 11486 | 13069 | |
| INJECTION WEIGHT(PS) | g | 7851 | 9105 | 10452 | 11892 | |
| oz | 276.9 | 321.1 | 368.6 | 419.4 | ||
| INJECTION PRESSURE | MPa | 186 | 161 | 140 | 123 | |
| INJECTION RATE | g/s | 1162 | 1348 | 1548 | 1800 | |
| PLASTICIZING CAPACITY | g/s | 141 | 150 | 158 | 162 | |
| SCREW SPEED | rpm | 90 | ||||
| CLAMPING UNIT | CLAMPING FORCE | KN | 20000 | |||
| MOVING MOULD-PLATE STROKE | mm | 1560 | ||||
| MAX. MOULD HEIGHT | mm | 1560 | ||||
| MIN. MOULD HEIGHT | mm | 710 | ||||
| SPACE BETWEEN TIE-BARS (W×H) | mm | 1620x1480 | ||||
| HYDRAULIC EJECTOR FORCE | mm | 480 | ||||
| HYDRAULIC EJECTOR STROKE | KN | 400 | ||||
| EJECTOR NUMBER | n | 33 | ||||
| OTHERS | PUMP PRESSURE | MPa | 16 | |||
| MOTOR /DRIVING POWER | KW | 37x4 | ||||
| HEATING CAPACITY | KW | 103.5 | ||||
| MACHINE DIMENSION (L×W×H) | m | 15.60x3.50x4.00 | ||||
| MACHINE WEIGHT | t | 128 | ||||
| OIL TANK CAPACITY | L | 3500 | ||||
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many well-known merchants
7.Client in Malaysia
