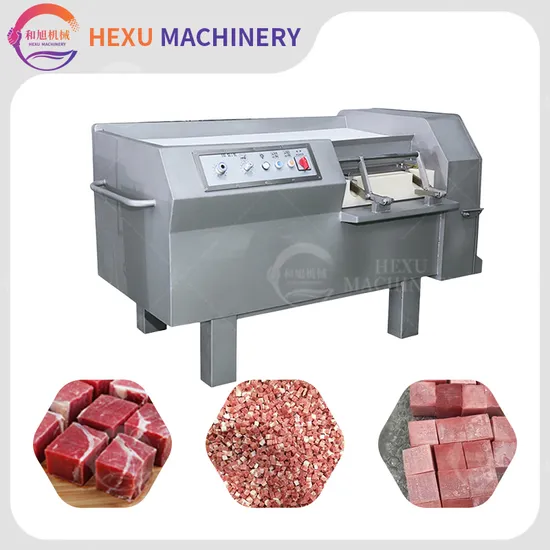

Electric Industrial Beef Dicer Diced Frozen Meat Cutting Machine

Product Description

Electric Industrial Beef Dicer Diced Frozen Meat Cutting Machine
Manufacturing Parameters:

Model	RJ-608	RJ-609
Dimension	1480*800*980mm	1940*980*1100mm
Voltage	220V/380V/customized
Power	3.2kw	2.95kw
Meat Container	84*84*350mm	120*120*550mm
Cutting Size	3/4/5/6/7/8/10/12/14/16/21/28/42/84mm	4/5/6/7/8/10/12/14/16/20/24/30/40/60/120mm
Capacity	300-500kg/h	500-800kg/h
Material	304 stainless steel

Machine Description:
This dicing machine is compact in structure and adopts optimized sanitary design. The casing and cutting grid are made of stainless steel. The cutting blade is double-edged for high efficiency. The cutting size of minced meat is 5mm and 30mm. It is suitable for cutting frozen meat and is an essential equipment in food processing.
Feature:

* Used for fresh meat, micro-frozen meat(above -4 degrees;), semi-defrosted meat, fruits and vegetables;
* Step moving push rod makes the material cutting shape standard and can change the material cutting thickness. * Double - edge cutting knife with high efficiency and it can be changed with sawtooth to cut meat with bone.
*These two machines have two types of blades: German and Chinese. The cutting of materials using German blades is more precise and the cutting surface is better.
*For the machine equipped with German knife, the reducer is also made in Germany. Siemens Electric, Omron relay and the entire hydraulic system are all imported originals.
The pushing rod of the meat dicing machine
When the machine is in operation, if the putter is opened, the machine will stop operating; only when the putter is closed, the machine will start to operate.
Control Panel
Automated control switch saves manpower.

The pushing speed of the meat material pushing rod can be changed by adjusting the cutting thickness knob.
Cutting Blade

The blade set of this machine is composed of 3 set blades. The material is cut into the shape of a cross horizontally and vertically, and finally the material is separated by a group of chopping blade.
