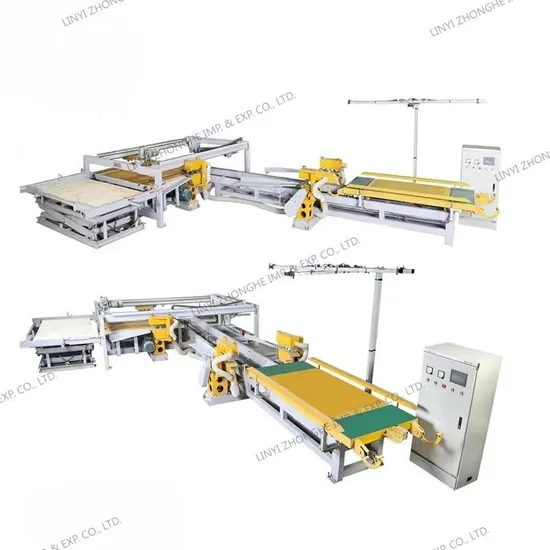

High Speed Plywood Edge Cutting Trimming Saw Machine

High Speed Plywood Edge Cutting Trimming Saw Machine

US$13,000.00-18,000.00 1 Set (MOQ)

Basic Info.

Machine Usage
Cutting Plywood
Machine Motor Power
40.4 Kw
Machine Weight
4800 Kgs
Shipment
1*40hc
Usage
Plywood Production
Automatic
Automatic
Certification
CE, ISO
After-Sales Service
Whole Life
Warranty
12 Months
Type
Automatic Dd Saw
Transport Package
Plastic Film
Specification
4 feet by 8 feet
Trademark
ZHONGHE
Origin
China
HS Code
8465910000
Production Capacity
10 Sets/Month

Packaging & Delivery

Package Size
700.00cm * 250.00cm * 180.00cm
Package Gross Weight
4800.000kg

Product Description


Detailed Photos
Product Description
TECHNICAL PARAMETERS
Model DDS48
Main frame material 100*120 mm square steel tube
Cutting size 1220*2440 mm
Cutting thickness maximum 60 mm
Diagonal tolerance less than 1 mm
Straightness tolerance less than 0.5 mm
Saw head Casting, fine finishing
Bearings NSK (Japan brand)
Voltage standard 380V, 50HZ
Pneumatic element AKS
PLC brand SIMENS
Touch screen displayer SIMENS
Main elctrical parts CHINT
Inverter DELTA
Feeding speed 0-30 meters per minute, adjustable
Line speed 5315 meters per second
Saw blade speed 6800 turns per minute
Electrical control panel dust-free and powder painting
Total Motor power 40.4 KW main saw blade head 7.5 KW, 4 pieces
small saw blade head 1.1KW, 4 pieces
lift table motor 3 KW, 1 piece
working table motor 1.5 KW, 2 pieces
The first saw guide rail 30 mm diameter , Six arrises guide
The second saw guide rail 30 mm diameter , cylindrical guide
Saw blade 4 big saw blade, 4 small saw blade (Germany BAK brand)
Gross weight 4800 KGS (fixed with screw and can load with 1*40HC container)

Company Profile

Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3-Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener. FAQ
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.
