3/4axis High Speed 20000rpm CNC Milling Tapping Cutting Machine Center Machinery Tool

Product Description

Hot Sale Alert: Discover the High-Efficiency Vertical CNC Milling Machine
Product Description
Product Parameters

Model		TZ-640B
Worktable size L*W	(mm)	700x400
Work table Max. loading	kg	300
T-slots size (N×W×D)	mm	3x14x125
X/Y/Z axis travel	mm	600/400/300
X/Y/Z axis feed speed	m/min	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw
X/Y/Z axis linear Guide	mm	30/30/30
Spindle taper		BBT30
Max. spindle speed	rpm	20000
Spindle motor power	kw	5.5
Distance from spindle nose to workbench	mm	150-450
A.T.C capacity	pcs	21
Positioning accuracy (X/Y/Z)	mm	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300
Machine weight	kg	3600
Machine size (L*W*H)	mm	1850*2300*2250

Main Parts of Equipment
(1) Base Large-span heavy base, guide rail specifications are 1.2 times greater than the same industry, effectively disperse gravity and processing capacity; Short saddle overhang greatly improves dynamic accuracy; The Y-axis motor rear design also helps to reduce the distance between the operator and the table, suitable for upper and lower workpieces, and greatly improve the processing convenience (as shown below).
(2) Uprights (a) The herringbone column is more stable and more convenient to maintain than the one-column column. (b) The design of the herringbone structure bed gold protection and chip removal system is more mature to avoid the installation of sheet metal water leakage from the mechanical structure. (c) The use of high-strength screws to fix, effectively improve the rigidity of the column, avoid vibration during processing, and be more stable during heavy cutting. (d) The shaft slint-bone structure is thickened at the same time, which greatly improves the rigidity of the bed, makes the processing more stable, and extends the service life of the machine tool.
(3) Headstock
The optimum contact ratio between the headstock and the column, coupled with the short nose-end Taiwan spindle, results in greater chip cutting capability for Taijing machine tools. Can complete drilling, milling, tapping, boring and other processes.
(4) Precision spindle with high precision, high performance and high stability (a) The spindle set is made in Taiwan. The main shaft grab tool is based on the butterfly spring on the main shaft, and the tension is applied to the pull nail of the tool handle through the four-jaw broach mechanism, which is closely matched with the taper hole of the main shaft to realize the grab tool. (b) The use of low inertia spindle motor, short acceleration time, improve tapping speed and quality. Spindle direct drive, with spindle orientation function.
(5) Machine tool protection
The lathe bed guide rail (XY axis) adopts stainless steel telescopic sheet metal; The column guide rail (Z axis) adopts organ type and armor type protection; The machine is fully enclosed to prevent iron filings and coolant from splashing, so that the operator can work in a safe and comfortable environment.
(6) Power distribution In addition to the mechanical design, Taijing machine tools also pay attention to the electrical design, the CNC system uses a unique optical fiber communication mode, which greatly improves the speed of data communication, and greatly reduces the number of wiring, so that the electrical cabinet is cleaner.

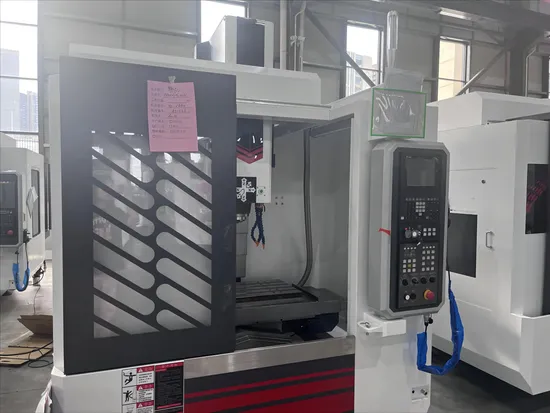

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Guarantees optimal processing conditions, ensuring a superior production environment for maximum efficiency.
Our state-of-the-art imported machinery, including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, ensures exceptional workpiece accuracy. This enhancement in assembly precision extends the longevity of accuracy, setting us apart in the industry.
• Advanced Detection Methods
We employ cutting-edge laser technology to rigorously test and fine-tune positioning accuracy, adhering to the prestigious German VDI3411 inspection standard (5 tests each), ensuring unparalleled precision.
Each machine tool is subjected to stringent processing tests before leaving our facility, ensuring they exceed actual processing accuracy requirements, delivering excellence beyond expectations.
Product sample
• This CNC machining center effortlessly integrates milling, drilling, and tapping functionalities, offering seamless versatility.
• Designed for CNC machining of diverse metal profiles, including aluminum, steel, copper, and non-metal materials, expanding your production capabilities.
• Widely applicable across thriving industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails, unlocking new possibilities in innovation.
Packaging & Shipping
•Uncompromised Protection
•Robust Structural Stability
•Eco-Friendly and Fully Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, with the remaining 60% balance payable before shipment.
2. What are your trade terms?
A: We accept FOB, CFR, and CIF trade terms.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. Please place your order based on our delivery timeline.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will select the most suitable machines for your needs.
