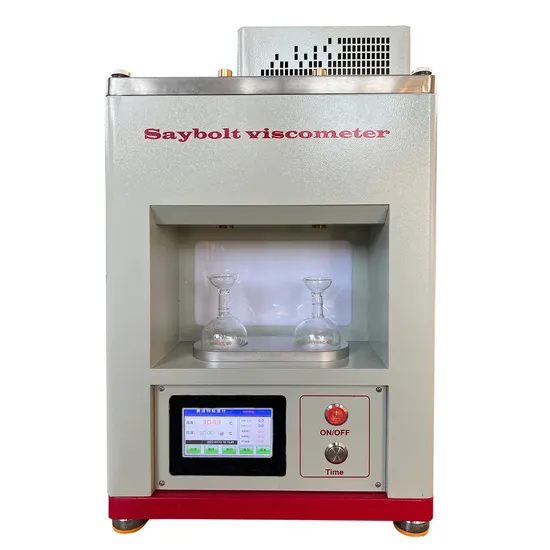

Electric Digital Viscometer Asphalt Lab Saybolt Viscometer

Product Description

Product Description The instrument conforms to the industry standard of the Ministry of Communications of the People's Republic of China "Highway asphalt and asphalt mixture test Regulations". It is suitable for measuring the viscosity of viscous petroleum asphalt, emulsified asphalt and liquid petroleum asphalt at high temperature, so as to determine the construction temperature of asphalt. Usually, the temperature of viscous petroleum asphalt is 120ºC ~ 180ºC.The temperature control instrument can set the required temperature, and the actual temperature is collected and displayed by the temperature sensor. With timing display, heating, stirring function. Parallel tests were conducted on the two specimens at the same time.

Detailed Photos
Product Parameters

Power supply voltage	220V50HZ
Temperature control range	normal temperature ~ 300ºC; Temperature control accuracy ±0.1ºC; Arbitrary temperature setting
Bath heating power	1000W; The medium is heat conduction oil
Sample tube	2, inner diameter 56mm
Test timing range	0s ~ 9999.9s±0.1s; Arbitrary time setting
Sample receiving bottle	The volume of heat-resistant glass is 60mL±0.05mL at 20ºC;
Insulation groove size	250 x 200 x 145mm
Dimensions	330×380×720mm

Services 1. Warranty 1 year of replacement and return.
2. Providing factory visit and study, technical training.
