500kg-2000kg/H Animal Feed Pelletizer/Processing Machine

Product Description

500kg-2000kg/h Animal Feed Pelletizer/Processing Machine
Introduction of 500kg-2000kg/h Animal Feed Pelletizer/Processing Machine
Feed pellet machine is the development of agricultural machinery research institute of the latest high-tech products. It is used for granulation of various organic, break through the conventional granulation process, raw materials don't need to be dried, powder ingredients can produce cylindrical particles, therefore, it can save a lot of energy.

Application of 500kg-2000kg/h Animal Feed Pelletizer/Processing Machine
The pellet machine is not only used for feed and animal husbandry industry, but also used for fertilizer and biomass energy. It can be used for pig, cow, horse, sheep, livestock etc, and chicken, duck, goose, fish, rabbit, dove small plant breeding feed factory, and animal manure, sludge, biogas residue as organic fertilizer, inorganic fertilizer, compound fertilizer and other fertilizer granules.

Advantages of 500kg-2000kg/h Animal Feed Pelletizer/Processing Machine
1. Wide used for recycle of livestock farms, fertilizer plant, biomass fuel plant, wood processing plant, chemical plant, food plant and cotton plant.
2. The size of pellet can be adjusted by changing dies with different diameters and compression ratios.
3. It produces cylindrical particles. The pellet has smooth surface, suitable density and higher curing degree.
4. The content of organic matter can reach one hundred percent. This machine can make starch pasting, protein coagulating or denaturizing, and improve the nutritional quality of feed pellets, meanwhile kill the pathogenic germ and parasite.
Technical datas of 500kg-2000kg/h Animal Feed Pelletizer/Processing Machine

Model	Power (kw)	Feed Pellet Capacity(kg/h)	Saw dust pellet Capacity(kg/h)	Dimension (mm)	Flat die diameter(mm)
PM-120	3	60-100	20-40	750*310*620	120
PM-150	4	90-120	40-60	750*350*650	150
PM-210	7.5	200-300	60-90	1000*430*950	200
PM-230	11	300-400	100-140	1140*470*970	230
PM-260	15	400-500	150-190	1200*520*1080	260
PM-300	22	600-700	200-250	1270*520*1080	300
PM-360	22	700-900	250-300	1340*580*1060	360
PM-400	30	900-1100	300-380	1450*650*1150	400

The complete feed pellet production line:
Step1: Crushing process
Crusher is used to crush the raw materials to suitable size before pelletizing.
Step2: Mixing process
Mixer is used to mix different raw materials. Our mixer is specially designed for discharge mechanism and large open Angle, so it has the advantage of discharge rapidly, less residue, good sealing and high mixing speed.
Step3: Pelletizing process
Feed pellet machine is the most important part of the whole feed pellet production process. Our feed pellet machine got high feedback from customers for advanced product design, reasonable structure and excellent production.
Step4: Cooling process
After pelletizing, the temperature of pellet is usually between 60-80 degrees and the moisture content is close to 15%. For storage purposes, a cooler must be used to reduce their surface temperature and prolong the storage time.
Step5: Packing process
The feed pellet is easy to be destroy in damp conditions. In order to facilitate transport and maintain feed pellets hardness, timely packaging is necessary.

Services of 500kg-2000kg/h Animal Feed Pelletizer/Processing Machine
Pre-sale Service
1.Offering overall technology and business consultation services;
2.Proposing the most suitable scheme and equipment for our customer;
3.Designing and producting machine according to the special demands of clients;
After-sales Service
1.Carefully checking machine in every working procedure, quality comes first;
2.Assisting our clients for foundation construction of equipments;
3.Dispatching engineers to install and debug equipments,training the first-line operators on site;
4.Regularly visit clients to solve production problems and providing our technology support.
We have more than 15 years experience, support you best before and after sales service.Quality is first and top Pursuit of our company.

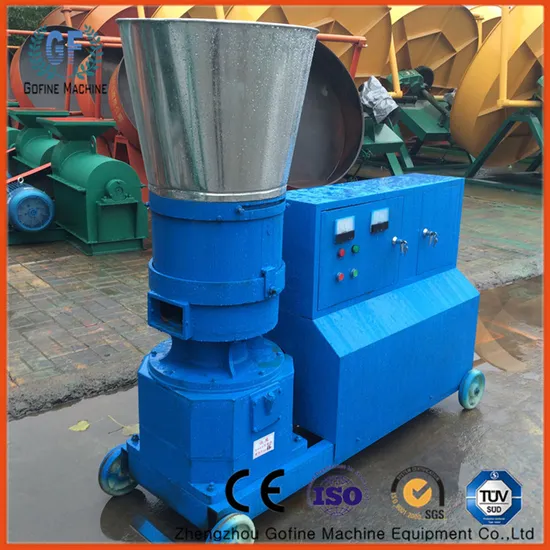

Product pictures of 500kg-2000kg/h Animal Feed Pelletizer/Processing Machine
About our company
Gofine Machine, establish in 2010, located in Longgang Developed Zone of Xingyang City, Henan, China, specially engaged in producing fertilizer production machinery, animal feed machinery, waste recycling machinery and trading in building machinery and food machinery and wood machinery; we have heavy standardization industrial plants with area 60000 square meter, bring advanced large metal processing equipment, including the 10 sets CNC machining center, 3sets laser cutting machine, and other equipment reaching total 100 sets; we have get known by the ISO9001-20001 certification and CE certification; Welcome you to know us more on our machine and our technology.
We take "Quality First and Customer Supreme" as our business philosophy, adhere business idea"Honesty and Excellence" and spirit of "Practical and Innovative", act "Attitude is everything" to our business and each client.
FAQ of 500kg-2000kg/h Animal Feed Pelletizer/Processing Machine Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type our customers at home or abroad. With our experienced quality control team, we are trying to offer you the product with best quality. However, we do recognize that there do have small amount of the product which may got faulty or damaged for different reasons;

Q: How does your after-sale service work if the product got damaged?
A: In the guarantee time 24 months, our general after-sale service is changing the damaged parts, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: wear parts do not include.)

If you have any further question on, please feel free to contact me freely!
