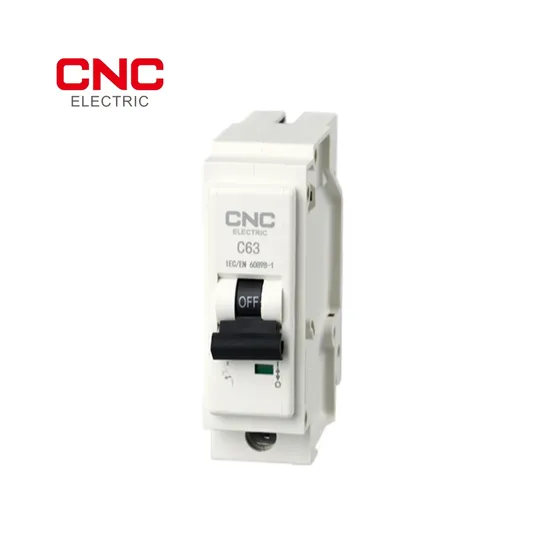

Yclp Plug-in Modular DIN Rail Design AC Miniature Circuit Breaker MCB with Overload and Short-Circuit Protection

Yclp Plug-in Modular DIN Rail Design AC Miniature Circuit Breaker MCB with Overload and Short-Circuit Protection

US$0.87
120-599 Pieces
US$0.84
600-1,199 Pieces
US$0.82
1,200+ Pieces

Basic Info.

Model NO.
YCLP
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
1p,2p,3p,4p
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000, CE, CB, CCC
Rated Current in (a)
6,10,15,20,25,30,35,40,50,63
Poles
1,2,3
Rated Frequency (Hz)
50/60
Rated Voltage Ue (V)
230/400
Connection
From Top and Bottom
Mechanical Life
8500
Electrical Life
1500
Installations
Plug-in
The Material of Enclosure
Resin
Transport Package
CNC/OEM
Specification
YCLP
Trademark
CNC/OEM
Origin
Zhejiang, China
Production Capacity
80000 Sets/Week

Packaging & Delivery

Package Size
45.00cm * 35.00cm * 20.00cm
Package Gross Weight
20.000kg

Product Description


Product Description
General
YCLP series circuit breaker is for overload & short circuit protection with isolationfunc- tion,which is used in residential and industrial distribution system.
Standard:lEC60898-1
Technical data
Type YCLP
Rated current In (A) 6,10, 15, 20, 25, 30,35, 40, 50, 63
Poles 1 2 3
Rated insulation voltage Ui (AC V) 400
Rated impulse-stand voltage Uimp (V) 4000
Rated working voltage Ue (AC V) 230/400
Frequency f (Hz) 50/60
Rated limited short-circuit breaking capacity lcu (KA) 220V 6
Operation characteristic (Times) Mechanical life 8500
Electrical life 1500
Installation plug-in
The Material of Enclosure resin
