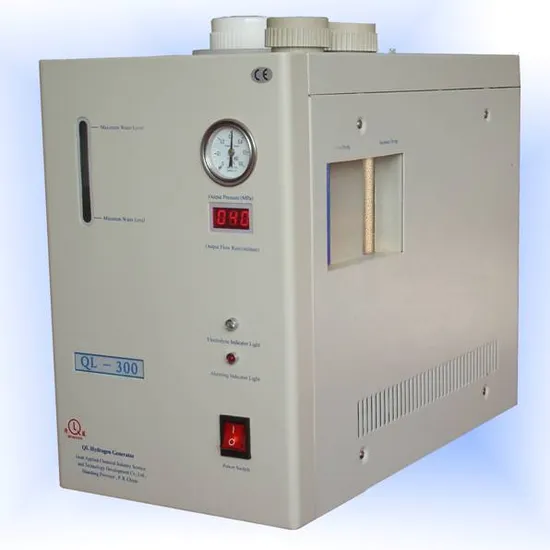

Factory Price Pem Hydrogen Generator Ql-300 for Gc

Product Description

QL-300 Hydrogen Generator Application Hydrogen is used in the laboratory for a variety of lab applications such as Gas Chromatography (GC) as fuel or carrier gas and ICP-MS as a collision gas.
In the chemical industry to synthesise ammonia, cyclohexane and methanol and in the food industry for hydrogenation of oils to form fats.
In industry, H2(g) is produced on a large scale by a process called steam reforming, to separate carbon and hydrogen atoms from hydrocarbon fuels.
Also it can be used in the area of chemical industry hydrogen generator, reduction protection, metal welding, smelting, power station cooling, hydrogen station producing hydrogen, surface protection, spacecraft, submarine, heavy hydrogen, heavy oxygen water, etc.
Product Description QL Series Hydrogen generator uses a proton exchange membrane (PEM) to produce high purity hydrogen gas from water. The PEM cell was originally developed by NASA and is extensively used in industrial and laboratory applications.
QL Hydrogen gas generators are a safe, convenient and typically the more cost-effective alternative to using high pressure cylinders of H2. QL hydrogen generator will provide hydrogen of a consistent purity, eliminating the risk of variation in gas quality, which can impact on analytical results.
QL Hydrogen generator also produces hydrogen gas on-demand around the clock, meaning that you do not need to worry about running out of gas at an inopportune moment. QL hydrogen generator will free up more of your time since you will not need to spend time ordering and changing out replacement cylinders.
QL hydrogen generator is an environmentally friendly alternative to cylinders, since once it is installed, Hydrogen generator will not need to leave the laboratory, providing gas for laboratory applications with all maintenance carried out in the laboratory. Hydrogen generator also reduces your laboratory's carbon footprint, since there is no need for trucks to deliver replacement cylinders and remove empty cylinders.
Product Parameters

Model	QL-150	QL-300	QL-500
H2 flow rate	0-150 ml/min	0-300ml/min	0-500ml/min
H2 output pressure	0-4 Bar	0-4Bar	0-4Bar
H2 purity	99.999%	99.999%	99.999%
Power voltage	AC100-120V or 200~240V	AC100-120V or 200~240V	AC100-120V or 200~240V
Net weight	15KG	16KG	17KG
Dimension	42x23x36 cm	42x23x36 cm	42x23x36 cm

Packaging & Shipping
