Air Clean Room Air Purification System High Efficiency Mini Pleat HEPA Air Filter

Product Description

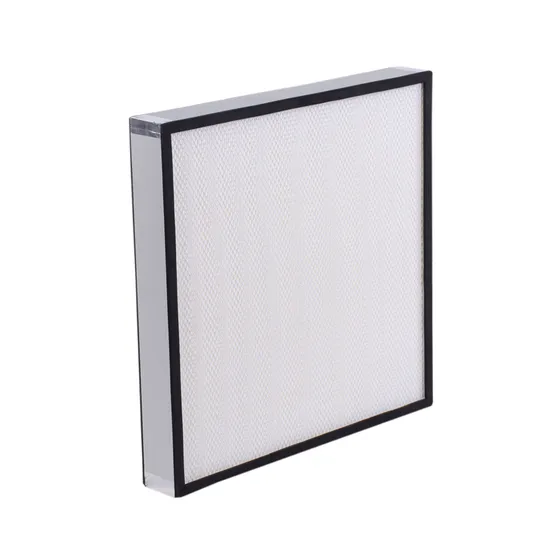

High Efficiency Mini Pleat HEPA Air Filter for Clean Room Air Purification System
Application
It is suitable for end filtration in ventilation equipment, dust removal equipment and air supply system with high cleanliness level
requirements.

Features
Large specific surface area, high dust capacity;
Uniform pleat spacing;
Stable air flow;
High filtration efficiency;
Low resistance;
Water and moisture resistance;
Temperature resistance ≤ 80 ºC;
Humidity resistance (relative humidity) ≤ 100% RH.

Specification

Mini Pleat HEPA Filter - Box Type 50D
Model	Size (mm)	CMH	I.N.P (Pa)	F.N.P (Pa)	Filter object (μm)	EFF. (%)	Filtration Class	Filtration Area (m2)
RT-MP2850-10	305*610*50	350/700	<30/70	<300/500	0.3	85≤E<95	E10	3.85
RT-MP8850-10	610*610*50	650/1300	<30/70	<300/500	0.3	85≤E<95	E10	7.44
RT-MPB850-10	1220*610*50	1200/2400	<30/70	<300/500	0.3	85≤E<95	E10	14.59
RT-MP2850-11	305*610*50	350/700	<55/120	<300/500	0.3	95≤E<99.5	E11	3.85
RT-MP8850-11	610*610*50	650/1300	<55/120	<300/500	0.3	95≤E<99.5	E11	7.44
RT-MPB850-11	1220*610*50	1200/2400	<55/120	<300/500	0.3	95≤E<99.5	E11	14.59
RT-MP2850-12	305*610*50	350/700	<75/180	<300/500	0.3	99.5≤E<99.95	E12	3.85
RT-MP8850-12	610*610*50	650/1300	<75/180	<300/500	0.3	99.5≤E<99.95	E12	7.44
RT-MPB850-12	1220*610*50	1200/2400	<75/180	<300/500	0.3	99.5≤E<99.95	E12	14.59
RT-MP2850-13	305*610*50	350/700	<100/205	<300/500	0.3	99.95≤E<99.995	H13	3.85
RT-MP8850-13	610*610*50	650/1300	<100/205	<300/500	0.3	99.95≤E<99.995	H13	7.44
RT-MPB850-13	1220*610*50	1200/2400	<100/205	<300/500	0.3	99.95≤E<99.995	H13	14.59
RT-MP2850-14	305*610*50	350/700	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	3.85
RT-MP8850-14	610*610*50	650/1300	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	7.44
RT-MPB850-14	1220*610*50	1200/2400	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	14.59
RT-MP2850-15	305*610*50	350/700	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	3.85
RT-MP8850-15	610*610*50	650/1300	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	7.44
RT-MPB850-15	1220*610*50	1200/2400	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	14.59
RT-MP2850-16	305*610*50	350/700	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	3.85
RT-MP8850-16	610*610*50	650/1300	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	7.44
RT-MPB850-16	1220*610*50	1200/2400	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	14.59

Mini Pleat HEPA Filter - Box Type 69D
Model	Size (mm)	CMH	I.N.P (Pa)	F.N.P (Pa)	Filter object (μm)	EFF. (%)	Filtration Class	Filtration Area (m2)
RT-MP2869-10	305*610*69	500/1000	<30/70	<300/500	0.3	85≤E<95	E10	5.94
RT-MP8869-10	610*610*69	900/1800	<30/70	<300/500	0.3	85≤E<95	E10	11.48
RT-MPB869-10	1220*610*69	1700/3400	<30/70	<300/500	0.3	85≤E<95	E10	22.51
RT-MP2869-11	305*610*69	500/1000	<55/120	<300/500	0.3	95≤E<99.5	E11	5.94
RT-MP8869-11	610*610*69	900/1800	<55/120	<300/500	0.3	95≤E<99.5	E11	11.48
RT-MPB869-11	1220*610*69	1700/3400	<55/120	<300/500	0.3	95≤E<99.5	E11	22.51
RT-MP2869-12	305*610*69	500/1000	<75/180	<300/500	0.3	99.5≤E<99.95	E12	5.94
RT-MP8869-12	610*610*69	900/1800	<75/180	<300/500	0.3	99.5≤E<99.95	E12	11.48
RT-MPB869-12	1220*610*69	1700/3400	<75/180	<300/500	0.3	99.5≤E<99.95	E12	22.51
RT-MP2869-13	305*610*69	500/1000	<100/205	<300/500	0.3	99.95≤E<99.995	H13	5.94
RT-MP8869-13	610*610*69	900/1800	<100/205	<300/500	0.3	99.95≤E<99.995	H13	11.48
RT-MPB869-13	1220*610*69	1700/3400	<100/205	<300/500	0.3	99.95≤E<99.995	H13	22.51
RT-MP2869-14	305*610*69	500/1000	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	5.94
RT-MP8869-14	610*610*69	900/1800	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	11.48
RT-MPB869-14	1220*610*69	1700/3400	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	22.51
RT-MP2869-15	305*610*69	500/1000	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	5.94
RT-MP8869-15	610*610*69	900/1800	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	11.48
RT-MPB869-15	1220*610*69	1700/3400	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	22.51
RT-MP2869-16	305*610*69	500/1000	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	5.94
RT-MP8869-16	610*610*69	900/1800	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	11.48
RT-MPB869-16	1220*610*69	1700/3400	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	22.51

Mini Pleat HEPA Filter - Box Type 80D
Model	Size (mm)	CMH	I.N.P (Pa)	F.N.P (Pa)	Filter object (μm)	EFF. (%)	Filtration Class	Filtration Area (m2)
RT-MP2880-10	305*610*80	600/1200	<30/70	<300/500	0.3	85≤E<95	E10	7.15
RT-MP8880-10	610*610*80	1100/1200	<30/70	<300/500	0.3	85≤E<95	E10	13.82
RT-MPB880-10	1220*610*80	2000/2200	<30/70	<300/500	0.3	85≤E<95	E10	27.09
RT-MP2880-11	305*610*80	600/1200	<55/120	<300/500	0.3	95≤E<99.5	E11	7.15
RT-MP8880-11	610*610*80	1100/1200	<55/120	<300/500	0.3	95≤E<99.5	E11	13.82
RT-MPB880-11	1220*610*80	2000/2200	<55/120	<300/500	0.3	95≤E<99.5	E11	27.09
RT-MP2880-12	305*610*80	600/1200	<75/180	<300/500	0.3	99.5≤E<99.95	E12	7.15
RT-MP8880-12	610*610*80	1100/1200	<75/180	<300/500	0.3	99.5≤E<99.95	E12	13.82
RT-MPB880-12	1220*610*80	2000/2200	<75/180	<300/500	0.3	99.5≤E<99.95	E12	27.09
RT-MP2880-13	305*610*80	600/1200	<100/205	<300/500	0.3	99.95≤E<99.995	H13	7.15
RT-MP8880-13	610*610*80	1100/1200	<100/205	<300/500	0.3	99.95≤E<99.995	H13	13.82
RT-MPB880-13	1220*610*80	2000/2200	<100/205	<300/500	0.3	99.95≤E<99.995	H13	27.09
RT-MP2880-14	305*610*80	600/1200	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	7.15
RT-MP8880-14	610*610*80	1100/1200	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	13.82
RT-MPB880-14	1220*610*80	2000/2200	<110/220	<300/500	0.3	99.995≤E<99.9995	H14	27.09
RT-MP2880-15	305*610*80	600/1200	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	7.15
RT-MP8880-15	610*610*80	1100/1200	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	13.82
RT-MPB880-15	1220*610*80	2000/2200	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	27.09
RT-MP2880-16	305*610*80	600/1200	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	7.15
RT-MP8880-16	610*610*80	1100/1200	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	13.82
RT-MP2880-10	1220*610*80	2000/2200	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	27.09

Note: Other specifications can be customized according to requirements.

Company Profile

RT Air Filtech is a booming air filters manufacturer, certified by ISO 9001:2015 and ISO14001:2015.
RT provided a full range of air filtration solutions for industries, such as electronics factories, semiconductors, liquid
crystal display, bio-pharmaceutical, food, petrochemical industry, clean room, hospital, rail transit, spray booth,
commercial and residential construction. Today, we are privileged to build up strong partnerships with more than
300 customers from over 98 countries offering excellent air filters so far.

RT offers raw material of air filters and its ready filter to customers.
Air Filter raw material: Paint arrestor fiberglass filter, Ceiling filter, Activated carbon filter, Pre-filter, laminated mesh
filter media, pocket filter roll media, HEPA filter paper, all kinds of frames for filter assembly Finished air filter: Spray
booth filters, Pre-filter, Medium pocket filter, Medium separator filter, Medium V-shaped filter, HEPA separator filter,
Compact HEPA filter, HEPA mini pleat, High-temperature HEPA filter, High-efficiency air supply, FFU, laminar flow
hood, etc.

Vision: To be a one-stop air filter supplier, build a superior RT brand
Philosophy: Integrity code, quality first, continuous innovation.
Value: Integrity, quality, win-win.
Quality policy: customer-oriented, quality first, energy saving, environmental protection.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral PE bags.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
