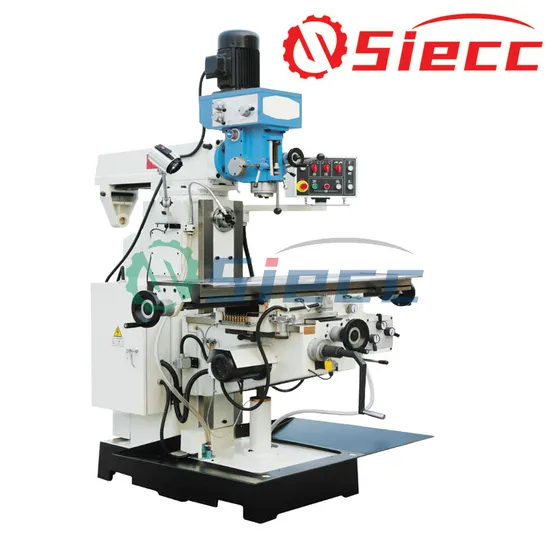

Milling Machine Turret X6336 Manual Milling Machine
| US$4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6336
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
X6336
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year
Product Description
universal turret milling machine X63361.Rotary table can be ordered at special request
2.XYZ 3-axis auto-feed and fast feed by servo motor
3.Taiwan 5hp /7.5HP step/variable turret milling head
| Specifications | Unit | X6336 |
| Table size | mm | 1600×360 |
| Table travel (X/Y/Z) | mm | 1300/320/450 |
| Table feed. (X/Y/Z) | mm/min | 30-750/20-500/15-375 |
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 |
| Spindle taper | 7:24 IS050 (H) 7:24 IS040 (V) | |
| Stroke of spindle quill | mm | 127 (V) |
| Distance between spindle nose and table surface | mm | 200-650 |
| Distance between horizontal spindle center line and table surface | mm | 20-470 |
| Distance between horizontal spindle center line and arm surface | mm | 245 |
| Spindle speed range | 12steps 60-1800 (H) 16steps 65~4660 (V) | |
| T-slots(NO./width/pitch) | mm | 3/18/80 |
| Arm travel | mm | 550 |
| Main motor power | Kw | 5.5 (H) 3.7 (V) |
| Torque of X/Y/Z axis AC servo motor | N.m | 10 |
| Overall size | mm | 2520×2100×2500 |
| Net weight | kg | 2850 |
