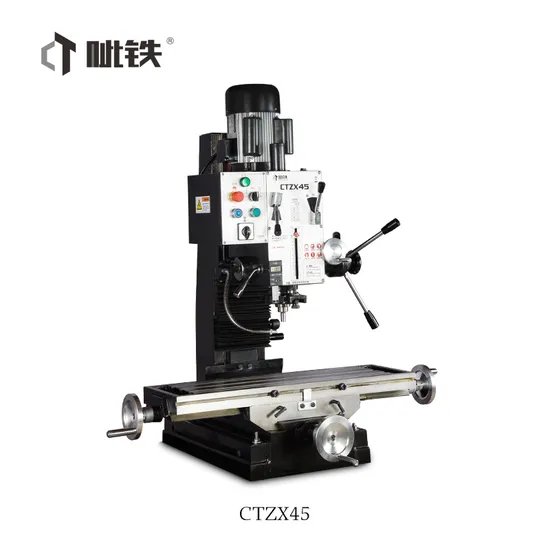

Dia. 45mm Hot Sales Combination Lathe Milling Drilling Machines Milling for Metalworking Ctzx45
Basic Info.
Model NO.
CTZX45
Type
Tool Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
845*910*1020mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Max.Drilling capacity | 45mm |
| Max.milling capacity | 80mm |
| Max.vertical milling capacity | 32mm |
| Max. tapping | M16 |
| Table size | 800x240mm |
| X spindle travel | 580mm |
| Y spindle travel | 200mm |
| Spindle taper | MT4 |
| Spindle travel | 130mm |
| Distance from spindle to column guide rail | 260mm |
| Distance from spindle end to table surface | 450mm |
| Spindle box left&right rotation angle | ±45° |
| Spindle speed range | 50HZ 80~1250PRM |
| Motor Power | 1.5KW |
| Net weight/Gross weight | 325KG/375KG |
| Overall dimensions | 845x910x1020mm |
| Package Size | 720x720x1050mm |
