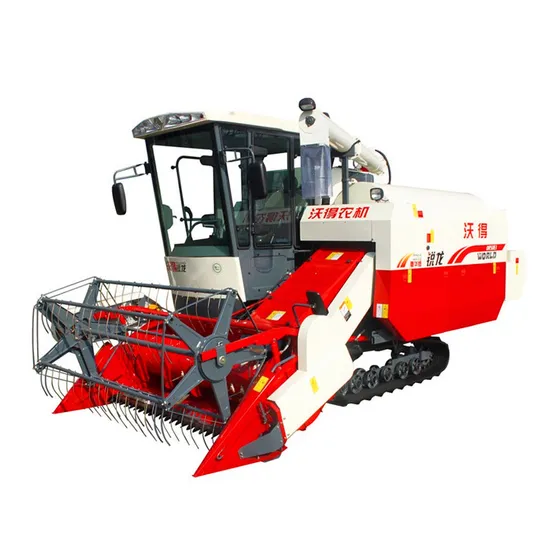

4lz-6.0p Rice and Wheat Combine Harvester with Hydraulic Gearbox
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4LZ-6.0P
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Combine Harvester
Crawler Type Harvester for Rice and Wheat
Applications
Rice or Wheat Harvesting
Feeding Capacity
5kg/S
Cutting Width
2800mm or 3200mm
Threshing Cylinder
540X1330mm
Efficiency
0.5-1.0ha/H
Transport Package
in Container
Specification
ISO
Trademark
WORLD
Origin
China
HS Code
84295100
Production Capacity
5000 PCS/Year
Product Description
Rice and wheat combine harvester with hydraulic gearboxcrawler type combine harvester, 102hp diesel engine, gearbox with HST, 5kg feeding capacity, 2200mm cutting width, standard sun-roof, air conditioned cabin as optional
Main Features:
1.Equipped with turbocharged engine 102hp with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields.
Details:
Specifications:
| Feeding Capacity (kg/s) | 5 | ||
| Work Dimension L*W*H (mm) | 5100*2890*2700 | ||
| Weight (kg) | 3100 | ||
| Cabin/Sun shade | Sunshade | ||
| Engine Part | Model No. | Changchai 4G33TC | |
| Power/Speed (hp/rpm) | 102/2600 | ||
| Fuel | Light Diesel Oil | ||
| Fuel Capacity (L) | 120 | ||
| Fuel Consumption(kg/hm2) | 12~30 | ||
| Start | Motor Starter | ||
| Gear Box | ZKB85 made by WORLD Factory, stronger power | ||
| HST | 45CC HST Imported from south Korea. | ||
| Walking Part | Rubber Track | Length of Ground Contact (mm) | 1700 |
| Center Distance (mm) | 1150 | ||
| Size(mm) | 550*90*56 | ||
| Average Contact Pressure (kpa) | ≤20Kpa | ||
| Min. Ground Clearance (mm) | 340 | ||
| Gear Shifts | Variable Sun-transmission 3 Shifts | ||
| Walk Speed (Km/Hour) | Low:0~1.85 Medium:0~6.5 High:0~9 | ||
| Theoretical Work Speed (Km/Hour) | 0.9-6.5 | ||
| Harvesting Unit | Grain Lifter | Divider | |
| Working Width (mm) | 2200 | ||
| Reel Bat | Dia. × Length (mm) | ∮900×2028 | |
| Gearshift Method | Constant Speed | ||
| Adjusting Means | Hydraulic | ||
| Stubble Height[Lift] (mm) | 25cm or above | ||
| Threshing &Harvesting Unit | Threshing Mode | Axial Flow Type, Bullet Rotor | |
| Threshing Rotor | Type of Threshing | Beat Bar | |
| Dia. ×Length (mm) | ∮620*2050 | ||
| Rotating Speed(rpm) | 662/732 | ||
| Fan | Diameter | ∮400 | |
| Separating Type | Vibrating Sieves +Air Blow | ||
| Area of Sieves (Lowe and Upper Sieves) (m2) | 1.645 | ||
| Grain-unload Unit | Grain Tank Capacity | 1000kg | |
| Grain Discharging Type | Manual or 360 Rotary Discharging Pipe | ||
| Alarm Units | Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger | ||
| Work Efficiency(hm2/h) | 0.6-0.9 | ||
| Crops | Rice, Wheat | ||
| Total Loss | Less than 2.5% | ||
| Breakage | Less than 1.5% | ||
| Impurity | Less than 1.5% | ||
