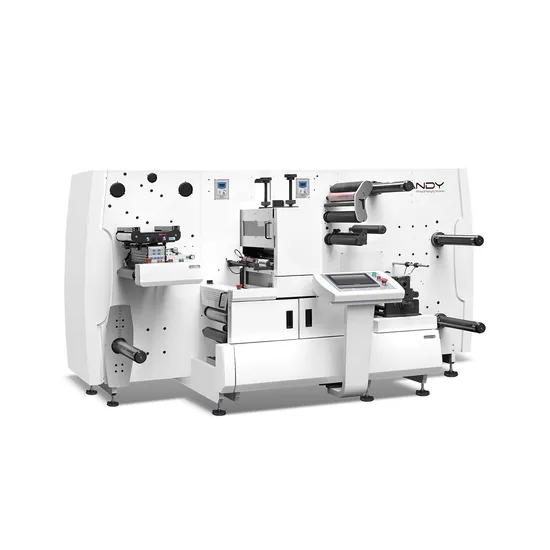

Andy Machinery Servo Driven High Precision Semi Rotary Label Die Cutting Machine
| US$30,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AIDC-370
Species
Rotary Die-Cutting Machine
Imprinting Type
Rotary
Placing Form of Template
Vertical
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products, Printed Label
Max. Speed
120m/Min
Max. Web Width
370mm
Max. Unwinding Diameter
800mm
Magnetic Cylinder
140t 1/8′′cp (Standard)
Transport Package
Wooden Case
Trademark
Andy Machinery
Origin
China
Production Capacity
100 Sets Per Year
Product Description
Product Parameters| Model | AIDC-370 |
| Max. Full Rotary Speed | 120m/min |
| Max. Semi Rotary Speed | 60m/min |
| Max Die Cutting Area | 380mm×350mm |
| Paper Width | 80mm--370mm |
| Max Unwinding Diameter | φ800mm |
| Max Rewinding Diameter | φ800mm |
| Length of Die Cutting | 100mm-380mm (Standard Cylinder) |
| Magnetic Cylinder | 140T 1/8''CP (Standard) |
| Unwind unit | Web guider |
| Flexo printing unit | Cold foil |
Certifications
After Sales Service
Packaging & Shipping
FAQ :
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balance after final testing.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q. Can you manufacture also more wide?
A. Yes, if you have other request contact us when you free.
