PFTE Coating Double Ended Bolt / A193B7 /A1942H XYLAN Stud Bolts

PFTE Coating Double Ended Bolt / A193B7 /A1942H XYLAN Stud Bolts

Product Details

Product Details

Product Description

Product Description
Name:Material:Standard:Finish:Thread:Colour:High Light:
Stud BoltsA193 B7/ A194 2H
ANSI/ASMEPTFE
UNCBLUE
PTFE Stud Bolts, Double Ended Bolt A193B7, Double Ended Hexagonal Nut Bolt B7

Teflon / PFTE Coating Double Ended Bolt / A193B7 /A1942H XYLAN Stud Bolts
XYLAN:
It is a trademark of a coating produced by Walford in the USA and is a PTFE anti-corrosion coating, which is applied to the metal surface after surface treatment and is processed by spraying to protect the metal with excellent anti-corrosion properties: resistance to chemical corrosion and other properties.
Data Sheet:
StandardANSI/ASME
SizeStandard & non-standard, customized
MaterialCarbon Steel, Stainless Steel and Alloy Steel
GradeA193 B7 / A194 2H
ThreadUNC
FinishPTFE coating
PackingBulk in cartons on wood pallet or according to customer special demand.
ApplicationStructural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile:
Supply AbilityAbout 60 tons per month
MOQ50pcs
Trade TermFOB/CIF/CFR/EXW/DAP
PaymentT/T, L/C , Western Union

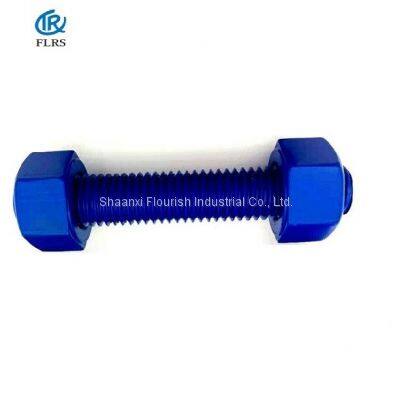

Picture:
Technical specifications:
Dry Film Thickness: 20-25microns
Components 20-30microns
Reduces make up torque: 70%
Coefficient of Friction: 0.08-0.11
Basecoat bond strength: 4000Psi
Topcoat Pencil hardness: 3-8H
Adhesion ASTM D3359: 4B,5B
Color: blue, green, red, yellow
Working temperatures: -195℃+260℃
