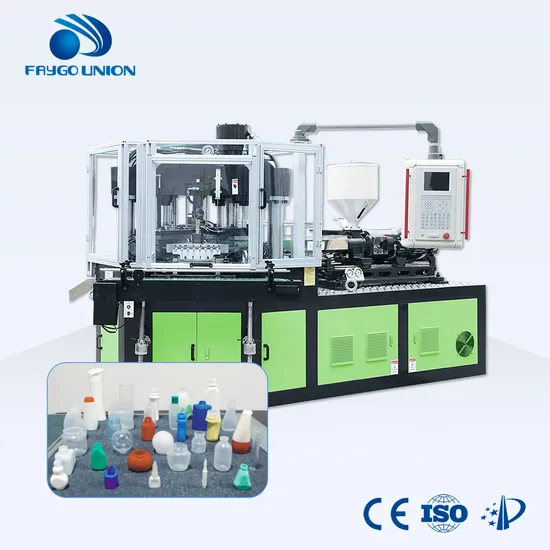

Plastic One Step PETG/PP Pharm Bottle Making Machine From 2ml to 2000ml Bottle Injection Blowing Molding Machinery

Product Description

Product Description
Plastic One Step PETG/PP Pharm Bottle Making Machine From 2ml to 2000ml Bottle injection Blowing Molding Machinery
Product Description
This plastic bottle Injection Blow Molding Machine suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.

Product Parameters
TECHNICAL SPECIFICATIONS:

ITEM	UNIT	FG40	FG45	FG65	FG75
Diameter of screw	MM	40	45	50	50
Injection weight	G	176	260	375	375
Heating capacity	KW	7.2	10	10	12
Clamping force of injection	KN	350	450	650	750
Clamping force of blow	KN	40	78	89	150
Opening stroke of mold platen	MM	120	120	140	140
Injector stroke	MM	220	220	240	240
Max. plate size of die(L*W)	MM	420*340	560*390	740*390	840*460
Min. mold thickness(H)	MM	180	240	280	280
Motor power	KW	15	25	37	40
Heating capacity of mould	KW	2.8	4.0	5	6
Hydraulic pressure	MPA	14	14	14	14
Min. working pressure of compressed air	MPA	≥1.0	≥1.0	≥1.0	≥1.0
Discharge rate of compressed air	M3/min	≥0.8	≥0.8	≥0.8	≥0.8
Consumption of cooling water	M3/hr	3	3	4	5
Dimension of machine (L*W*H)	MM	3100*1200*2200	3500*1400*2300	4000*1500*2350	4000*1700*2000
Machine weight	T	4.0	6.0	7.5	12
Suitable bottle Range	ML	2-1000	2-1000	2-1000	2-1000
Max. Height of bottle	MM	≤220	≤240	≤240	≤240
Max. dia. of the bottle	MM	≤80	≤90	≤100	≤100
Total power	KW	25	39	52	58

Features of the Automatic Injection Stretch Blow Molding Machine
1, The clamping framework adopts single-crossbeam, double poles, which enlarge the space of setting mould, much easier to install mould.2, Unique PREFILL technology and variable displacement pump pressurizing technology are applied to hydraulic system to achieve high efficiency and more reliable.3, Specialized control system: Adapting the specified controller and software, after completion of machine's commission and parameter setting, all the settled parameters can make use of SD card for storage and re-install into other machines, it is really very convenience for function testing and after service.4, Energy saving: Refer to our testing result, this system can save minimum 35% of energy consumption at any machine. And also it can joint together with special boards and software installed to achieve the totally energy consumption and unit product energy consumption, and help the customers to understand the production cost.5, Stripper station adopts long-distance digital laser sensor for detection, to protect mould safety6, Stripper station installs light curtain, to protect personal safety.7, Optional servo rotary, (Patented product .patent number:ZL2014 2 O196619.X)precise, long using time, easy maintenance, save energy.8, Optional injection with all-electric way, replacing hydraulic way(Practical patent products .patent number: 150582G0287N).9, CE certificate.
The products features of Mould
* . Excellent Mechanical Strength, impact-resisting, and non- craking.
* . Bottle mouth and thread are of precise measurement, Enabling well close match with the bottle cap.
* . Plastic Medicine Bottle's safe thread can be molding directly, act in connect with safe bottle cap.
* . The size and weight of the product can calculate and design clearly and meet the requirement of the design without any deviation.
* . The surface of the bottle mouth, neck and the body is good luster and smooth, the standard of bottle body is unity.
* . The joint seam on the bottle body is smooth, no scrap rubber.
* . During the production, there is no wasted material.

Injection Blowing vs Extrusion Blowing
Injection Blowing	Extrusion Blowing
Plasticizing mechanisms, hydraulic systems, control appliances and other mechanical components, Process is divided into injection molding station, blow molding station, stripping station.	Extruder, die, fixture mechanism and blowing system
No excess waste, can be molded at one time	have wastet, need to be processed later
3ml-1000ml hollow product	3ml~3000L hollow products
Bottle weight will change about 1%	Bottle weight will change about 3%
Uniformity wall thick	The change of wall thick is about 10-20%
None kerf	Not only has the kerf but also weaken the intension
Good convexity at the bottom of the bottle	Bad convexity at the bottom of the bottle
None flash	20-40% flashes
Can not produce very thin thickness product(0.5-1.5mm)	can use equipmengt to adjust the thickness
Multi cavity,high output,soomth bottleneck	Less cavities,low output,uneven bottle neck
High mould lifetime,suitable for long tome production	Short mould lifetime,suitable for short time production
Compact machine system,less occupation of land	Need more assistant machines,more occupation of land

COOPERATE WITH FAMOUS BRAND

Automatic PP/PE Injection Stretch Bottle Blowing Moulding Machinery making 1L/2L bottles
Company Profile

Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!
Why choose us?
Our advantages
1.20+ years plastic machine factory and we have 20000 square meters standard workshop
2.15+ years experience engineer for the plastic machine, They can provide you with customized services
3.15+ years experience After-sales team, They have debugged and repaired 100+ production lines.
4.18 hours online sales staff, They can answer your questions within 6 hours
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
