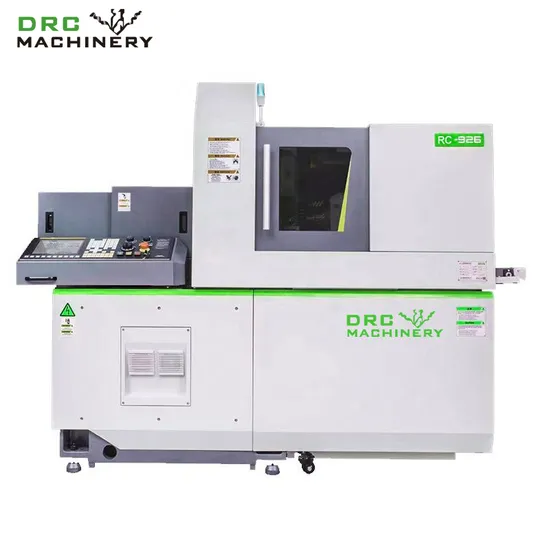

2 Spindle Swiss Type CNC Automatic Lathe Machine RC926 High Precision 5 Axis CNC Lathe for Metal Cutting

Product Description

High Precision RC926 2 Spindle 5 Axis Swiss Type Cnc Automatic Lathe
Machine Cnc Lathe
The main structural features 1.10,000rm maximum spindle rotation speed: ultra-high spindle and back spindle rotation speed, which can provide the
best processing conditions when slender materials and small diameter tools are used.
2.250mm single clamping processing length: super long single clamping processing length, the workpiece that needs to
be changed to be processed before can be completed in one clamping, which shortens the processing time.
3.Ø26mm Optional maximum clamping device: the diameter of the spindle through hole is Ø26mm, and it can be equipped
with a Ø26 clamping device for processing large materials.
4.Both the spindle and the back spindle adopt high-precision built-in electric spindles.
5.The dual-channel design significantly
improves production efficiency. Equipped with a special tool holder for the back, it can shorten the processing time through
the independent processing of the front/back.
High Speed RC926 Swiss Type Cnc Automatic Lathe Machine For Stainless Steel Working
The main structural features1.10,000rm maximum spindle rotation speed: ultra-high spindle and back spindle rotation speed, which can provide the best
processing conditions when slender materials and small diameter tools are used.
2.250mm single clamping processing length: super long single clamping processing length, the workpiece that needs to be
changed to be processed before can be completed in one clamping, which shortens the processing time.
3.Ø26mm Optional maximum clamping device: the diameter of the spindle through hole is Ø26mm, and it can be equipped with
a Ø26 clamping device for processing large materials. 4.Both the spindle and the back spindle adopt high-precision built-in
electric spindles. 5.The dual-channel design significantly improves production efficiency. Equipped with a special tool holder
for the back, it can shorten the processing time through the independent processing of the front/back.
swiss type CNC lathe:
1. The number of tools is large, and the tool exchange is fast.
2. It can process all kinds of ultra-slender parts.
3. The power head meets the needs of turning and milling compound processing.
4. Reasonable layout, compact appearance and less floor space.
Swiss Type CNC Automatic Lathe Machine with high speed ture is the workpiece after a clamping can be achieved complete
processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the
sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine
is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous
feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, automotive,
communications, optics, medical equipment and other high-precision, work complex slender

Project	Model	RC926
Processing parameters	Max processing diameter	Φ26mm
	Max processing length	190mm
	Max axial drilling diameter	Φ10mm
	Max axial tapping size	M8
	Max spindle speed	10000rpm
	Max radial drilling diameter	Φ7mm
	Max radial tapping size	M6
	Max speed of radial power head	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Max extraction length of workpiece	100mm
Tool sizes	Number of tools installed	6
	Tool (turning tool)	12X12
	Sleeve	Φ25.0 X 4T
Chuck guide bush	Spindle collet	TSUGAMI B0265CCR
	Power head chuck	ER11,ER16
	Bushing	TSUGAMI BS-20#-B
Feed speed	Z1/Z2/X2/Y axis feed rate	30m/min
	X1	20m/min
Motor	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting oil	0.4KW
	For spindle cooling	0.075KW
	For lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Air pressure flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.3KW
	Weight	2600
	Dimensions	2250X1200X1850mm
