Double Spindles CNC Turret Lathe Center for High-Quality Production Needs

Product Description

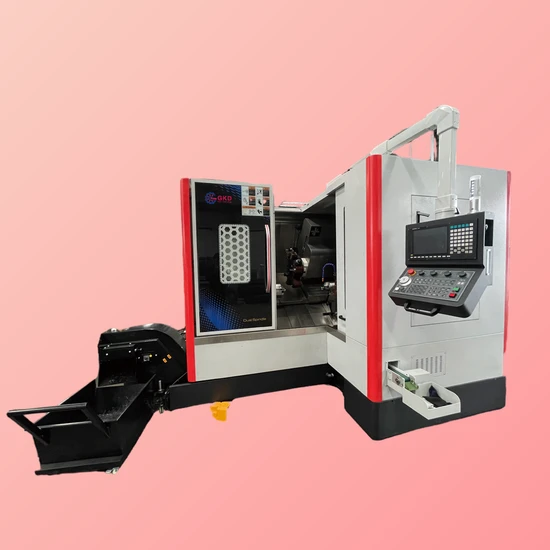

Introducing the High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center, a bona fide masterpiece of modern engineering brilliance. This groundbreaking machine is expertly crafted to redefine the very essence of precision and productivity in your machining operations, ensuring each and every task is executed with unparalleled perfection and efficiency. CNC (Computer Numerical Control) turning lathes have utterly transformed the landscape of modern manufacturing, offering unmatched precision and extraordinary efficiency throughout the production process. These state-of-the-art machines boast the extraordinary capability to perform a vast array of operations including drilling, tapping, turning, and boring with exceptional accuracy. They are widely utilized across numerous industries such as automotive, aerospace, medical, and electronics. CNC turning lathes are indispensable in crafting intricate and high-precision components, meeting the stringent demands of today's cutting-edge technological applications.
In this comprehensive article, we delve into the intricate components that form the core of a CNC turning lathe, unraveling its complex working principles. We further explore its versatile applications across a wide array of pioneering industries, underscoring its critical role in propelling modern manufacturing into new realms of innovation.
Product Parameters

Model	LM-10SY-III
Double spindle/Double power turrets
Number of axis	10 Axis(X+Z+Y+X1+Y1+Z1+C1+C2+TD+D2)
Max turning diameter on the bed	Ф450mm
Max processing length	400mm
Max processing diameter	Ф300mm
Main spindle nose	ANSI A2-6
Main spindle hole	Ф82mm
Bar hole diameter	Ф70mm
Main spindle speed	1-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	ANSI A2-4/A2-5
Sub-spindle hole	Ф46mm
Bar hole diameter	Ф36mm
Sub-spindle speed	1-5000rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	11KW
X1/X2 axis power	3.1KW
Y1/Y2 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power(milling axis)	3.1KW
D2 Axis	2.4KW
Hydraulic pump motor power	2.2KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Turret Outer diameter shank	25mm
Turret Inside diameter shank(Boring tool)	Ф32mm
Slider Outer diameter shank	20mm
Slider Inside diameter shank	Ф20mm
TD axis live tools milling speed	0-4000rpm
End milling tool specification	4*ER20
X1/X2/Y1/Y2/Z1/Z2 axis rapid speed	25m/min
X1/X2 axis travel	560mm/590mm
Y1/Y2 axis travel	150mm/150mm
Z1/Z2 axis travel	540mm/330mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.003mm
X/Y/Z/Z1 axis position accuracy	0.002mm
Oil tank capacity	60L
Cooling tank capacity	95L
Machine weight	5800KG
Machine size	2600*2200*2250mm
Controller	Syntec 200TB

Company Profile
For many years, GKD (Mingju) has passionately dedicated itself to harmonizing resources, pioneering cutting-edge technologies, and consistently striving to deliver unparalleled quality to our esteemed global clientele.
GKD, an illustrious conglomerate, excels in the research, development, and manufacturing of premier CNC machining centers. Strategically nestled near Hong Kong, China, a locale celebrated as the "World Factory", GKD proudly stands at the forefront of innovation. Complementing this is our esteemed European headquarters in Italy (Taiwan), establishing a robust global sales and service network. Our expansive enterprise boasts five prolific production bases situated in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our flagship suite includes state-of-the-art vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, alongside a plethora of high-end CNC machine tools and production lines. We have ascended as a paramount manufacturer in China, showcasing a comprehensive industrial chain of CNC metal cutting machine tools. Our exquisite products find applications across diverse sectors such as aerospace, mold manufacturing, automotive, energy, marine, engineering machinery, and 3C electronic products, cementing our reputation as a leader in the manufacturing industry.
GKD Group is unwavering in its mission to deliver premium products coupled with all-encompassing solutions. We ardently embrace the tenets of high-speed, precision, and efficiency in intelligent equipment, offering exemplary solutions that resonate with the discerning needs of our clientele, ensuring unparalleled cost-effectiveness. Boasting formidable manufacturing prowess and robust after-sales service, GKD has extended an extensive portfolio of products and services to numerous countries and regions, earning a prestigious global footprint.
GKD Group is wholeheartedly devoted to serving you with sincerity and excellence!
Our Advantages
1. Experience an unmatched level of professional service in the CNC machine export industry, where our profound expertise and extensive experience set us apart as leaders.2. Elevate your business with state-of-the-art technologies acquired from industry giants in Italy and Taiwan, providing unparalleled manufacturing capabilities that sharply distinguish us.3. Choose from a diverse range of flexible payment options, including T/T, Western Union, L/C, and Paypal, each designed to seamlessly align with your financial preferences.4. Take advantage of our steadfast dedication to supplying premium, safe materials at very competitive prices, ensuring you receive superior value and excellence.5. We easily accommodate small order requests, offering you effortless access to our outstanding products and services without any complications.6. Enjoy our rapid response times, guaranteeing that your inquiries and needs are addressed with immediate and efficient attention.7. Our transportation strategies emphasize both speed and safety, guaranteeing that your products reach their destination swiftly and securely.8. We deliver customized OEM design services, meticulously tailored to flawlessly meet the unique and specific demands of our valued clients.
Certifications
Packaging & Shipping
After Sales Service
1) Experience unparalleled peace of mind with our exclusive 12-month quality warranty, activated as soon as your product safely reaches its destination port. During this time, we are committed to providing all necessary fittings at no additional cost, except in cases of physical damage. Simply return any damaged components to us via courier at your expense, and we will promptly dispatch the replacements. After the warranty period, repairs and replacements will incur a minimal fee as they become your responsibility. 2) Although onsite maintenance by our engineers may not always be feasible, rest assured with our comprehensive online support systems, designed to keep you continually supported. Whether it’s installation, operation, adjustment, or maintenance, our team of experts is poised to assist you through email, MSN/Skype, video calls, telephone, and fax, ensuring quick resolution of any challenges encountered.3) Should you encounter issues beyond the scope of our online support during installation, use, or adjustment, capitalize on our premium Door-to-Door service. Our expert engineers can travel to your location for assembly, maintenance, or adjustments. To facilitate a seamless experience, kindly assist with visa arrangements, prepay travel expenses, and provide suitable accommodation. A translator should also be available during their stay. Alternatively, your engineer is welcome to visit our factory to participate in comprehensive technical training at no cost.
FAQ
1. What is your minimum order quantity and warranty?MOQ is one set, and warranty is one year.2.What brand of the bearing do you use?NSK from Japan3.When is the delivery time?We will delivery it within 15-30 days after received your payments.4. How to handle the warranty period?During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.5.Can your company send the technical personnel to our company and direct our workers for free?When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD150.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
