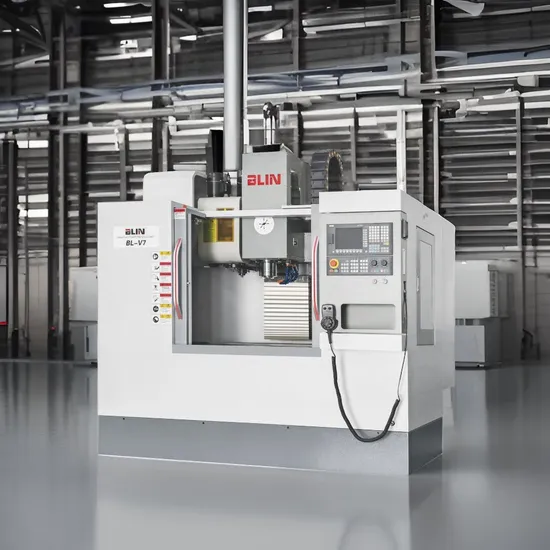

CNC Machining Center Milling Machine Tool
| US$24,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-V7
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
900*400mm
Table Max. Loading
300kg
T Slot(No./Width/Gap)
3/14/100mm
X/Y/Z Axes
720/450/470mm
Distance From Spindle Nose to Table Surf
120~590mm
Distance From Spindle Center to Column S
375mm
Spindle Type
Bt40
Spindle Motor
3.7(Option:5.5kw)
Spindle Speed
Belt-Drive: 8000/10000kw
X/Y/Z Axes Motor
6/6/11(Siemens 808d)Nm
Cutting Feed Speed
12m/Min
X/Y/Z Axes Rapid Moving Speed
36/36/24m/Min
Positioning Precision
+-0.005
Repeatable Positioning Precision
+-0.003
Tool Magazine
Umbrella Type 12t/Arm Type 16t
Transport Package
Plywood Case/Steel Pallet
Specification
1830*1870*2120
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- Suitable for medium-sized cutting
- 3 axes adopt high precision linear guideway
- Designed by GERMAN engineer
- Whole production process accord to TAIWANESE standard
- Chips outlet set at back of machine
- Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
- High speed, high precision, long using lifespan
- Adopt HT300 high class cast iron,after aging treatment and FEA analysis
- Bridge shape column, high rigidity, high stability
- 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash
and temperature rising, ensure stable positioning and repeatable positioning precision
| Item | Specification | Unit | BL-V7 |
| Worktable | Table size | mm | 900×400 |
| Table max. loading | kg | 300 | |
| T slot(NO./width/gap) | mm | 3/14/100 | |
| Travel | X/Y/Z axes | mm | 720/450/470 |
| Spindle | Distance from spindle nose to table surface | mm | 120~590 |
| Distance from spindle center to column surface | mm | 440 | |
| Spindle type | mm | BT40/Φ120 | |
| Spindle motor | kw | 5.5 | |
| Spindle speed | rpm | 8000(option:10000 belt-drive/12000 direct-drive) | |
| Feeding axes | Cutting feed speed | m/min | 10 |
| X/Y/Z axes rapid moving speed | m/min | 36/36/30 | |
| X/Y/Z axes feeding motor | Nm | 6/6/11(SIEMENS 808D ADVANCED) | |
| X/Y/Z axes ball screw dia./pitch | mm | 32/16 | |
| X/Y/Z axes linear guideway width | mm | 30/30/30 | |
| Precision | Positioning precision | mm | ±0.005 |
| Repeatable positioning precision | mm | ±0.003 | |
| Tool magazine | Tool magazine type | / | Arm type 16T |
| Max. tool weight | kg | 8 | |
| Max. tool length | mm | 200 | |
| Max. tool dia.(fully loaded) | mm | Φ80 | |
| Max. tool dia.(no adjacent tool) | mm | Φ150 | |
| Tool changing time | / | Tool to tool: 1.8s | |
| Others | Overall dimension(L×W×H) | mm | 2220×2000×2160 |
| Weight | kg | 3200 |
Main parts list:
| Item | Brand |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN-TPI |
| Ball screw | TAIWAN-HIWIN |
| Linear guideway | TAIWAN-HIWIN |
| Spindle unit | TAIWAN-VYU CHEN |
| Tool magazine | TAIWAN-OKADA |
| Booster cylinder | TAIWAN-HAO CHENG |
| Lubrication pump | TAIWAN-BEISUN |
| Power switch | TAIWAN-MEANWELL |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electric parts | FRANCE-SCHNEIDER |
Standard configuration: -SIEMENS 808D ADVANCED CNC controller -16T ARM type tool magazine Optional configuration: - SIEMENS 828D/FANUC 0I MF CNC Controller
- 12T Umbrella type tool magazine
- 4th axes
- Tool setting probe
- CTS(coolant through spindle)
Other models choice:
All our machines range:
About us:
