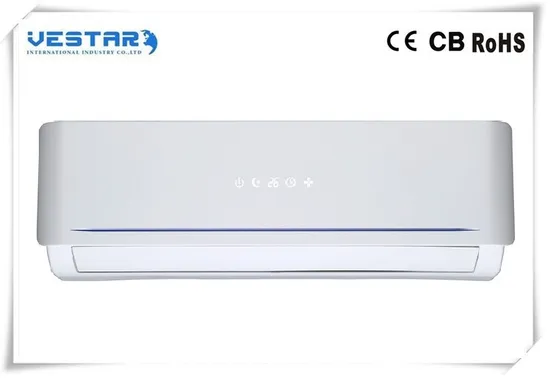

9000/12000/18000/24000BTU 50Hz/60Hz Cooling/ Heating Inverter and Non Inverter Split Portable Central and Commercial Air Conditioner Inverter R22, R410A, R32
| US$99.00-200.00 | 230 Pieces (MOQ) |
Basic Info.
Model NO.
VAC-09CHS/
Usage
Room
Indoor Machine Noise
36-49dB
Certification
CE, RoHS, GS, Saso
China Energy Efficiency Standard
Level 1
Cooling/Heating
Cooling/Heating
Power Source
Electrical
Power Type
DC
Condition
New
Cooling Capacity
12000BTU
Color
Multi Color
Function
Heating Pump
Control Type
Remote
Noise Level
39 dB
Power Supply
220~240V~/50Hz
Refrigerant
R22
Transport Package
Wooden Packing
Specification
770*240*180
Trademark
SANG
Origin
China
HS Code
84151010
Production Capacity
100000
Product Description
9000/12000/18000/24000BTU 50Hz/60Hz Cooling/ Heating Inverter and Non Inverter Split Portable Central andCommercial Air Conditioner Inverter R22, R410A, R32 Product Description
Product Parameters
1.9000btu 12000btu 18000btu 24000btu 30000btu split air conditioner
2.wall split mount air conditioner for rooms etc
3.dc inverter air conditioner
4.heating pump wall split air conditioner
5.factory wholesale with cheap price and professional service
| Model No. | VAC-09CHS/* | VAC-12CHS/* | VAC-18CHS/* | VAC-24CHS/* | VAC-30CHS/* | ||
| Type | Heating Pump | Heating Pump | Heating Pump | Heating Pump | Heating Pump | ||
| Control type | remote | remote | remote | remote | remote | ||
| Rated cooling capacity | Btu/h | 9,000 | 12,000 | 18,000 | 24000 | 30000 | |
| Rated heating capacity | Btu/h | 9,000 | 12,500 | 18,000 | 24500 | 30500 | |
| Moisture removal | Liters/h | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | |
| Pressure | High(DP) | MPa | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Low(SP) | MPa | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Indoor noise level at cooling | High | dB(A) | 36 | 42 | 45 | 49 | 52 |
| Med. | dB(A) | 34 | 39 | 41 | 44 | 47 | |
| Low | dB(A) | 31 | 36 | 38 | 40 | 43 | |
| Outdoor noise level | dB(A) | 50 | 52 | 54 | 58 | 64 | |
| Electrical Data | |||||||
| Power supply | 220~240V~/50Hz | 220~240V~/50Hz | 220~240V~/50Hz | 220~240V~/50Hz | 220~240V~/50Hz | ||
| Voltage Range | V | 198~264 | 198~264 | 198~264 | 198~264 | 198~264 | |
| Rated current | Cooling | A | 4.3 | 5.6 | 8.5 | 11.3 | 14.9 |
| Heating | A | 4.1 | 5.7 | 8.2 | 11.5 | 15.0 | |
| Rated input | Cooling | W | 940 | 1240 | 1880 | 2480 | 3280 |
| Heating | W | 910 | 1250 | 1800 | 2520 | 3310 | |
| Annual energy consumption | kwh (cooling) | 470 | 620 | 940 | 1240 | ||
| Max Current | Cooling | A | 5.6 | 7.3 | 11.1 | 14.5 | 19.4 |
| Heating | A | 5.4 | 7.4 | 10.6 | 14.9 | 19.6 | |
| Max Power input | Cooling | W | 1220 | 1610 | 2440 | 3220 | 4260 |
| Heating | W | 1180 | 1630 | 2340 | 3280 | 4300 | |
| Refrigerating System | |||||||
| Refrigerant/Charge | Gram | R22 | R22 | R22 | R22 | R22 | |
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | Rotary | |
| BRAND | RECHI | RECHI | RECHI | GMCC | CRSS | ||
| Fan System | |||||||
| Indoor air circulation(Cooling/Heating) | m3/h | 480 | 520 | 780 | 1000 | 1300 | |
| Indoor fan type | Cross flow | Cross flow | Cross flow | Cross flow | Cross flow | ||
| Outdoor fan type | Propeller | Propeller | Propeller | Propeller | Propeller | ||
| Connections | |||||||
| Connecting Pipe | Gas | mm | Φ9.52(3/8'') | Φ12(1/2'') | Φ12(1/2'') | Φ15.88(5/8'') | Φ15.88(5/8'') |
| Liquid | mm | Φ6(1/4'') | Φ6(1/4'') | Φ6(1/4'') | Φ9.52(3/8'') | Φ9.52(3/8'') | |
| Connecting Wiring | Size x Core number | 1.0x3; 0.75x2 | 1.0x3; 0.75x2 | 1.5x3; 0.75x2 | 0.75x4; 0.75x2 | 0.75×4 | |
| Others | |||||||
| Suitable area | m2 | 9~16 | 15~23 | 20~35 | 27~45 | 50~70 | |
| Net dimensions (W x H x D) | Indoor | mm | 718×240×180 | 770×240×180 | 900x280x202 | 1033×313×202 | 1186×340×260 |
| Outdoor | mm | 600×232×500 | 700×256×552 | 760×256×552 | 820×300×605 | 900×805×360 | |
| Packing dimensions (W x H x D) | Indoor | mm | 805×305×255 | 855×305×255 | 985x365x298 | 1103×400×300 | 1265×415×338 |
| Outdoor | mm | 745×353×550 | 803×361×600 | 863×361×590 | 950×426×640 | 1031×925×447 | |
| Net weight | Indoor | kg | 6 | 8 | 10 | 14 | 17 |
| Outdoor | kg | 24 | 30 | 38 | 46 | 68 | |
| Gross weight | Indoor | kg | 8 | 10 | 13 | 17 | 21 |
| Outdoor(without pipe) | kg | 27 | 34 | 41 | 50 | 74 | |
| Outdoor(with pipe) | kg | 28 | 35 | 42 | 53 | 77 | |
| Loading Capacity | 20'/40'/40'HC | 132/277/310 | 103/235/275 | 95/198/222 | 70/150/166 | 98(40'HC) | |
