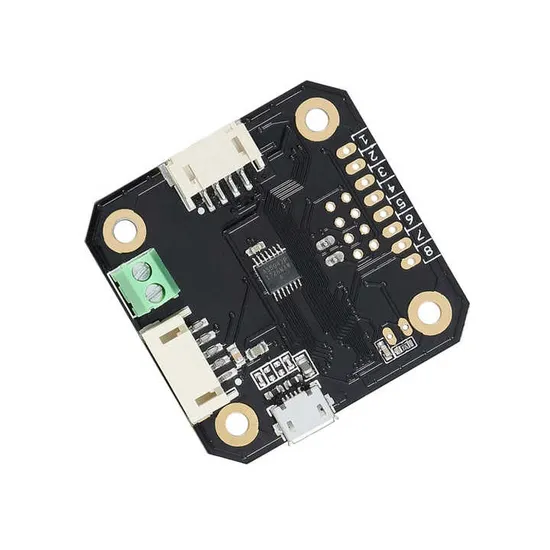

10 Years PCB Assembly Multi-Layer SMT PCB PCBA Production

Product Description

Product Description 10 years PCB assembly multi-layer SMT PCB PCBA production

PCBA	Production Capability
Stencil Size	736 × 736mm
Minimum IC Pitch	0.2mm
Maximum PCB size	1200 × 500mm
Minimum PCB thickness	0.25mm
Minimum Chip size	0201 (0.2×0.1)
Maximum BGA size	74 × 74mm
BGA ball pitch	1.00mm (minimun), 3.00mm (maximum)
BGA ball diameter	0.4mm (minimun), 1.00mm (maximum)
QFP lead pitch	0.38mm (minimun), 2.54mm (maximum)
Volume	One piece to low volume production quantities
	Low cost first article bulids
	Schedule deliveries
Assembly type	Surface mount assembly (SMT)
	DIP assembly
	Mixed technology ( Surface mount and through hole )
	Single or double sided placement
	Cable assembly
Components type	Passive components
	As small as 0402 package
	As small as 0201 with design review
	Ball Gid Arrays (BGA)
	As small as 0.5mm pitch
Parts procurements	Turnkey (We supply the parts)
	Consigned (You supply the parts)
	You supply some parts, we do the rest.
Solder type	Leaded
	Lead-free/ ROHS compliant
Other capacilities	Repair / rework services
	Mechanical assembly
	Box build
	Mold and plastic injection

Detailed Photos Our Advantages

FAQ Q1:What service do you have?
A:We provide turnkey solution including RD, PCB fabrication, SMT, testing and other value-added service.
Q2:What are the main products of your PCBA services?
A:Our PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering / Measurements, Consumer Electronics.
Q3:Can we inspect quality during production?
A:Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.
Q4:How can we ensure our information should not let third party to see our design?
A:We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q5:What files required to get quotation from you?
A:For PCBA quotation, please provide Gerber data / files and also BOM (bill of materials), and if you need us to do function test, please also provide the test instruction/procedure.
Q6:How to ship the goods?
A1:For small packages, we will ship the boards to you by DHL,UPS,FedEx,EMS. Door to door service! You will get your PCBs at your home.
A2:For heavy goods more than 300kg, we may ship your boards by ship or by air to save freight cost. Of course, if you have your own forwarder,we may contact them for dealing with your shipment.
Q7:How long does it take for PCBA quote?
A:Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
Q8:Do you have any minimum order quantity (MOQ) requirement?
A:No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
