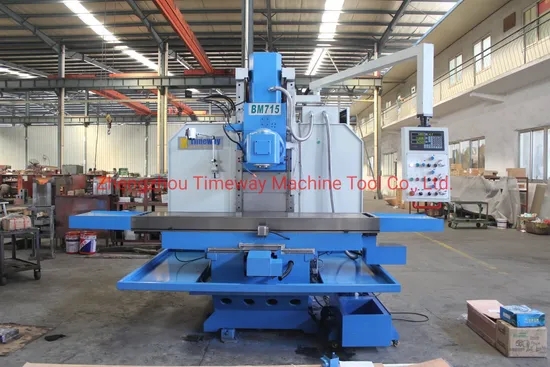

PLC Control Bed Type Vertical Universal Milling Machine (BM715)

Product Description

Fresadora / Heavy Duty Vertical Universal Milling Machine
Model: BM715

PART 1---Product Description
***Features:
1.Full gears transmitting headstock , ISO50 spindle through reconditioning, carburizing, and quenching
process, increase the rigidity,
2.3-axis precision digital readout indicator (DRO) , with electronic handwheel (MPG), extremely minimize
the setting time, control equivalent:0.001mm ;
3.Program controlled , can realize multi-points & steps automatic lubricate.
4.Precision ball rolling lead screws transmit, double servo motors drive, can realize 13000m/min rapid
cutting.
***Standard Accessories:
Electric cabinet and hung up control panel, Oil collecting plate, Coolant pump, Draw bar,
Manual pulse generator (MPG), Auto. lubricate pump, Machine vise, Collet chuck, Reduction sleeve,
Work light, 3axis digital readout system(DRO), Wrenches.

***Optional Accessories:
Clamping kits, Aair power draw bar, Rotary table, Dividing head.

***Parameter:

Specifications	Unit	BM715
Spindle hole taper	mm	7:24 ISO50
Spindle speed range	r/min	Variable 6-300,30-1500
Distance between spindle axis and column guideway	mm	610
Distance between spindle nose and table surface(V)	mm	0-650
Distance between spindle axis and table surface(H)	mm	8-660
Table size	mm	2100*500
T slots	mm	4/20/100
Table travel-X	mm	1500
Table travel-Y	mm	650
Table feed-X/Y	mm/min	2.5-3000
Table feed-Z	mm/min	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000
Main motor power	Kw	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18
Cooling pump motor power	w	90
Overall size	mm	3220*2420*2800
Weight	kg	7300

Part 2---Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).


Part 3---FAQ
1. Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2. Payment terms: T/T, L/C, Western Union payment terms is acceptable.
3. Delivery time: 60~90days....(vary as the machine's different size and complexible).
4. Warranty period: 12 months after delivery.
(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price). Packaging & Shipping
