Advanced Roller Conveyor Shot Blasting Machine for Diverse Workpieces

Product Description

Product Description ODM Factory Price Q69 Roller Through Type Profile Steel Plate Large Workpiece
SurfaceCleaning Shot Blasting Machine
Our Company
Our company specializes in producing sand casting machinery equipment, shot blasting machines, and main accessories. The company has a professional technical team, and since its establishment, it has adhered to the service tenet of "quality first, integrity first", using professional technology to meet all customer needs in products.
Product Description

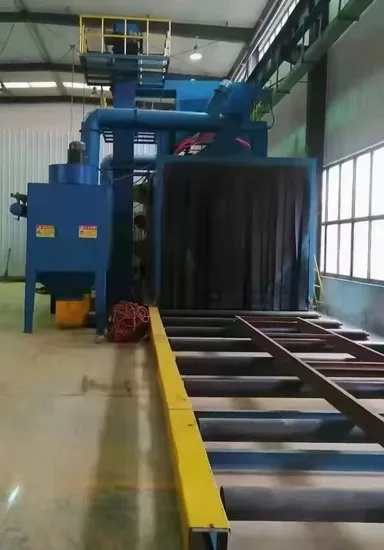

Q69 Type Roller conveyor shot blasting machines are mainly used for treating long and/or flat components. The components continuously pass through the pre chamber, the blasting chamber, and the cleaning chamber on a special roller conveyor. Highly efficient turbines fixed on the machine housing make it possible to treat the components on all sides.

Type	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
The effective cleaning width(mm)	800	1200	1500	2000	2500	3000	4000
The room feed-in size(mm)	1000*400	1400*400	1700*400	2200*400	2700*800	3200*800	4200*400
The length of cleaning workpiece(mm)	1200-12000	1200-1600	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
The speed of wheel conveyer(m/min)	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
The thicksness of cleaning steelsheet(mm)	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-100
The section steel specification(mm)	800*300	1000*300	1500*300	2000*300	2500*700	3000*700	4000*300
The quantity of shot blasting(kg/min)	4*180	4*250	4*250	6*250	6*250	6*360	8*360
The first enclosed quantity(kg)	4000	4000	4000	4500	4500	8000	11000
Roll brush adjusting height(mm)	200	200	350	450	600	850	900
Airness capacity(m³/h)	22000	17560	19000	19500	27758	28050	38000
Exterior size(mm)	25014*4500*9015	12180*4250*7095	15200*5370*6797	30650*6850*9095	31200*8078*7500	44042*6385*7758	45000*7830*11117
Total power(except for dust cleaning)(kw)	90	78.3	113.5	156.6	204.8	224.55	293.6

FAQ
1.Q: How many days to produce this machine?
A: Some standard machines in stock, can be delivered right away after your deposit. Customized specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 30 to 50 days.
2.Q: What does your factory do regarding quality control?A: We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.
3.Q: What's your machine quality guarantee?
A: Usually Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
4.Q: Could you give installation and commissioning overseas? How long will it take?
A: Yes, we supply overseas service, customers shall pay for the engineers flight tickets and local transport, hotel, food. Small machines usually takes 5 days, while big machines usually takes about 20 days even one or two months.
