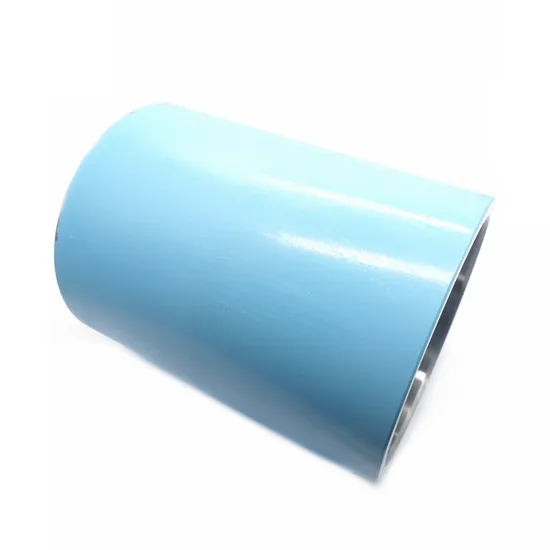

Waterjet Head Intensifier Spares 87K Low Pressure Cylinder (019975-1) (011290-1)
| US$200.00-220.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PF019975-1, PF011290-1
Movement Method
Automatic
Control Method
Automatic
Numerical Control
CNC/MNC
Processing Precision
Available
Performance Classification
Economical CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Carton or Wooden Case
Specification
standard
Trademark
No have
Origin
Guangzhou
HS Code
8401100000
Production Capacity
50000PC/Year
Product Description
Waterjet Cutting Machine
waterjet cutting machine/water jet machine cutting metal/glass/stone/plastic
Waterjet abrasive
80mesh Australia pink Garnet sand for waterjet cutting machine
Waterje Nozzles and another spare parts different waterjet cutting machine spare parts
Detail description
| Name | Code |
| PF020070-1 | SHORT BLOCK INTENSIFIER ASSEMBLY, 87K |
| PF014623-1 | LONG BLOCK INTENSIFIER ASSEMBLY, 87K |
| PF019579-1 PF019579-2 | 94K Hyperjet Metric Accumulator 1.0L |
| PF045160-1 | P4 Cutting Head Assembly, XD |
| PF019309-1 | BLEED-DOWN VALVE ASSEMBLY |
| PF015084-1 | BLEED-DOWN VALVE REPAIR KIT |
| PF011742-1 | BLEED-DOWN VALVE BODY; |
| B-8427-1 | 60K Bleed-Down Valve Actuator Housing |
| B-5975-1 | Bleed Down Valve Output Adaptor |
| PF019975-1 PF011290-1 | 87K LOW PRESSURE CYLINDER |
| 011492-1 020079-1 | PISTON ASSY 87K ESL |
| 020080-1 011304-1 | 87k intensifier low pressure piston/bisuit plunger |
| PF007029-1 | Plunger Retainer |
| A-0270-250 | Snap Ring, Piston |
| PF019684-1 ,011301-1 PF014819-1 PF020072-1 | 87k intensifer end bellassembly left hand |
| PF019683-1 ,PF011300-1 , PF014818-1 ,020074-1 | 87k intensifer end bellassembly light hand |
| PF014817-1 | END CAP ASSY, INTENS 75K - 87K |
| PF013157-1 | SPARES KIT;LP SEAL;INTN; 75K - 87 K |
| PF014589-1 | TIE ROD END CAP 75K - 87K-2.0 INT |
| PF014840-1 | LP Cylinder Tie Rod Nut |
| PF011291-1 PF020078-1 | 87K LP CYLINDER TIE ROD |
| PF014597-1 | 87K INTENSIFIER TIE ROD HEX NUT |
| PF010276-1 | Oil Seal Spacer OEM |
| C-2728-1 | snap ring for Oil Seal |
| B-1040-2 | Bushing Guide for End Bell - Plunger Bearing |
| A-11275 | Spring Rod Seal |
| B-8345-2 | 60k on/off valve II VALVE ASSEMBLY |
| PF011275-1 | Sensor assy, prox, e-shift, 24V |
| B-8346-1 | Actuator assembly e-shift |
| B-1702-1 | Shifting Pin, Electrical Shift |
| PF020592-1 | HP CYLINDER, 75K - 87K INT CARTRIDGE; |
| PF010253-1 | HIGH PRESSURE CERAMIC PLUNGER 60K, 75K, 87K |
| PF040015-1 PF053334-1 | SEAL CARTRIDGE 87K-2.0 INTENS |
| PF020595-1 | FILLER TUBE ASSY, 75K - 87K INT CART |
| PF020071-1 PF014495-1 | CHECK VALVE ASSY 75K - 87K INT PH2; |
| PF020077-1 | BODY, CHECK VALVE 75K - 87K INT |
| PF012035-1 | MAINT KIT, 75K - 87K CHECK VALVE; |
| PF014884-1 | INLET CHECK VALVE REPAIR KIT, 87K |
| PF014885-1 | REPAIR KIT, 75K - 87K OUTLET CHECK VALVE REPAIR KIT |
| PF042101-1 | OUTLET BODY ADAPTER 87K |
| PF014388-1 | Check valve seat |
| PF015384-1 | Inlet poppet |
| PF010564-1 | Inlet check valve support |
| PF011309-1 | Outlet poppet |
| PF060652-1 PF042102-1 | Check Valve Outlet Seat, |
| PF013403-1 | Hydraulic Manifold, Side Mount w/Relief Valve |
| A-18862 C-2743-1 | Electrical Shift and Pilot Assembly, 24v (Rexroth) |
| A-10544 | Pilot Valve, 24V Electrical |
| A-5480 | Hydraulic Filter |
| A-11367 | FILTER ELEMENT, 6 MICRON, 13" LONG FLOW A-11367 |
| A-1449 | 10" WATER FILTER CARTRIDGE, .45 MICRON; |
| A-1555 | 10" WATER FILTER CARTRIDGE, 1.0 MICRON |
| PF014922-1 | SWIVEL ASSY, 1 / 4 D-ACT 90 DEG 75K - 87K |
| PF015093-1 | REBUILD KIT, SWIVEL, 1 / 4, 75K - 87K |
| PF049358-1 | 1/4" 10 Degree Single Axis Swivel Assemblyy |
| PF014918-1 | WaterJet 87K Swivel Body |
| PF048127-1 | water jet parts 87ksi swivel shaf |
| PF009930-1 | Metering Valve Assembly |
| PF009927-1 | Metering Valve Housing Assembly |
| PF057205-1 | Flow Type, Mini Hopper Abrasive Metering Assembly |
| PF009929-1 | Paser 3 Diverter |
| PF010295-1 | SPARES KIT;METERING DISK;ABR XFER |
| 009931-1/2/3/4/5/6/7/8/9/…/18 | METERING DISC |
Product Show
Company Description and Our Factory
Guangzhou perfect machinery tech co., ltd ,it is one professional waterjet cutting machine and spare parts supplier, Our company is in a famous Career Technical College in Guangzhou. Our College have very advanced CNC equipments, I think that is a world-class processing equipment, we do for some America water jet factories production of high pressure parts for many years, and more Chinese large water jet plants producing intensifier . i am sorry For i cannot give you the names of these factories, but I promise to give you the quality of the United states.
Normal standard waterjet spare parts like 60k&90k water jet intensifier and all the kinds of water jet cutting heads, and the water on/off valve, water jet orifice ruby and abrasive nozzle, and high pressure hp cylinder, check valve body, waterjet HP seals, oil seal, ceramic plunger, valve seat, all the normal water spare parts we have high quality and good price.
We have water jet hgh pressure intensifier pump quality same like Flow waterjet , KMT waterjet ,Dardi waterjet ,and we have good water jet working table.
Any spare parts of water jet cutting machine, Welcome to Guangzhou meet me and contact myphone
Packing & Delivery
Delivery Details : 3-7 days after order of waterjet parts packing
Waterjet cutting machine package : wooden package
Waterjet spare parts : soft package inside,carton package outside.
The package ways aslo can according to customer requirement.
