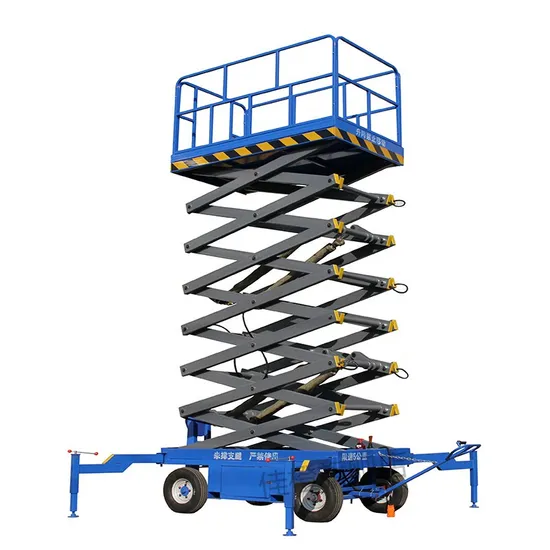

Manual Pulling Scissor Lifting Platform

Product Description

Product description: High quality mobile scissor lifting platform provided by Henan Mine Crane Using ordinary carbon steel and manganese steel structure, four-wheel movement is convenient, the work surface is wide, and the bearing capacity is strong. Multiple people can work at the same time, making high-altitude work safer and more efficient. It is suitable for construction sites, workshops, warehouses, stations, and docks. , gas stations, stadiums and other high-altitude equipment installation, maintenance, cleaning, etc. 2022 work platform lifts/scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness. Scissor Aerial Work Platform Features: lifting mechanism of high-strength Manganese steel rectangular tube production. With a safety device to prevent Overloading of the lift. Provided to prevent hydraulic line rupture safety Protection valve. Emergency lowering device in case of a power outage
Product specification:

items	07series		08series		12series		14series
models	GTJZ
	0807DC	0808DC	1008DC	1012DC	1212DC	1412DC	1414DC	1614DC
capacity	230kg	380kg	230kg	450kg	320kg	320kg	450kg	200kg
Capacity-extension deck	113kg	113kg	113kg	113kg	113kg	113kg	113kg	113kg
Max occupancy	2	2	2	2	2	2	2	2
Max working	7.80m	8.20m	10.10m	10.10m	12.00m	13.80m	13.50m	15.70m
height-A
Max platform	5.80m	6.20m	8.10m	8.10m	10.00m	11.80m	11.50m	13.70m
height-B
Length-C	1.86m	2.42m	2.42m	2.42m	2.42m	2.42m	2.79m	2.79m
Width-D	0.76m	0.83m	0.83m	1.17m	1.17m	1.17m	1.27m	1.27m
Height(raillings	2.19m	2.24m	2.37m	2.36m	2.49m	2.62m	2.49m	2.62m
unfolded)
Height-E	1.85m	1.94m	2.07m	1.80m	1.93m	2.06m	1.93m	2.06m
(railling folded)
Platform size	1.67m×	2.27m×	2.27m×	2.27m×	2.27m×	2.27m×	2.64m×	2.64m×
(L×w-F)	0.74m	0.83m	0.83m	1.14m	1.14m	1.14m	1.14m	1.14 m
Extension deck	0.90m	0.90m	0.90m	0.90m	0.90m	0.90m	0.90m	0.90m
size -G
Ground	0.10m	0.10m	0.10m	0.10m	0.10m	0.10m	0.10m	0.10m
clearance
(stowed)
Ground	0.02m	0.02m	0.02m	0.02m	0.02m	0.02m	0.02m	0.02m
clearance
(elevated)
wheelbase	1.40m	1.87m	1.87m	1.87m	1.87m	1.87m	2.24m	2.24m
Min turning	0m	0m	0m	0m	0m	0m	0m	0m
radius
(inside)
Min turning	1.60m	2.25m	2.25m	2.23m	2.23m	2.23m	2.25m	2.25m
radius
(outside)
Driving motor	24V/1.5kw	24V/1.5kw	24V/1.5kw	24V/1.5kw	24V/1.5kw	24V/1.5kw	24V/1.5kw	24V/1.5kw
Lifting motor	24V/2.0kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/4.5kw	24V/4.5kw	24V/4.5kw
Driving speed	4.0km/h	4.0km/h	4.0km/h	4.0km/h	4.0km/h	4.0km/h	4.0km/h	4.0km/h
(stowed)
Driving speed	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
(elevated)
Lifting/lowering	18/22sec	24/34sec	28/40sec	28/40sec	45/36sec	50/38sec	60/45sec	80/60sec
speed
batter	4×6V/	4×6V/	4×6V/	4×6V/	4×6V/	4×6V/	4×12V/	4×12V/
	225Ah	225Ah	225Ah	225Ah	240Ah	260Ah	300Ah	300Ah
charger	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A
Max	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
gradeability
Max tilt	3°/1.5°	3°/2°	3°/1.5°	3°/2°	3°/2°	3°/1.5°	3°/2°	3°/1.5°
tires	Φ323×	Φ381×	Φ381×	Φ381×	Φ381×	Φ381×	Φ381×	Φ381×
	100mm	127mm	127mm	127mm	127mm	127mm	127mm	127mm
Weight	1260kg	2020kg	2140kg	2270kg	2520kg	3140kg	3060kg	3220kg

Packing & Delivery:
Company profile:
FAQ :
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams.
You are also warmly welcomed to our factory to make the inspections.
Meanwhile, also support live factory view & crane inspection.
2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is famous international brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
