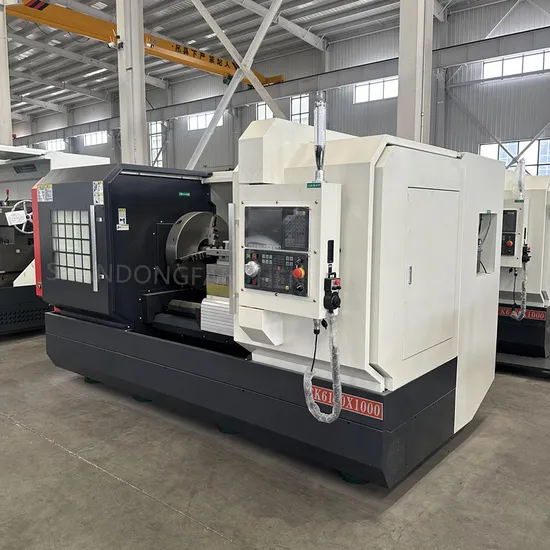

CNC Lathe Large Aperture Heavy Cutting Ck6180 × 1000 Integral Floor Standing Machine Tool
| US$11,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6180
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
800
Maximum Working Length
750/1000/1500/2000/3000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ105
Width of Guide
600
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
30-835r/Min
Servo Motor
10/15
Maximum Turning Diameter on The Tool Hol
480mm
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10
Packaging & Delivery
Package Size
3600.00cm * 1700.00cm * 1900.00cm
Package Gross Weight
3500.000kg
Product Description
| Maximum turning diameter on the bed | 800mm |
| servo motor | 15nm,10nm |
| Maximum turning diameter on the tool holder | 480mm |
| Maximum working length | 750/1000/1500/2000/3000/4000 |
| x middle drag board width | 330mm |
| Width of guide rail on top of bed | 600mm()Bed foot integral casting |
| Spindle end | D11 |
| Spindle through hole diameter | 105mm |
| Spindle speed | 30-835r/min |
| Numerical control system | 840 Siemens840 |
| z Drag board z to the minimum moving unit | 0.001mm/min |
| X Drag plate X to the minimum moving unit | 0.001mm/min |
| X Drag plate X direction travel | 450mm |
| z Drag board z stroke | 1500mm |
| Maximum working length | 1350mm |
| x/z Drag board x/z to fast moving speed | 6000/7000mm/min |
| Tail seat sleeve diameter | 100mm |
| Tailstock sleeve taper hole | 6Six Mohs |
| Maximum travel of tailstock sleeve | 250mm |
| Main motor power | 11kw |
| Z-axis repeated positioning accuracy | 0.01mm |
| X axis repeated positioning accuracy | 0.01mm |
| Electric tool holder repeated positioning accuracy | 0.002mm |
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
