Fully Functional Nesting CNC Loading Machine 1325 1530 Atc CNC Furniture Cabinet Making Machine with Automatic Knife Changing
Basic Info.
Model NO.
A6-2028-C8
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Model
A6-2028-C8
Size
2000*2800mm
Spindle Height
400mm
Spindle
9.0kw Hqd Air Cooling
Spindle Speed
0-24000rpm
Inverter
Delta High Frequency 11kw
Drive Motors
Syntec 1000W Servo Motor
Reducer
Japanese Shimpo Planetary
Control System
Syntec 60we
Table
Vacuum and T-Slot Table
Guide Rail
25mm
Atc
8PCS Carousel Tool Magazine
Dust Collector
3kw with Double Bags
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year
Product Description

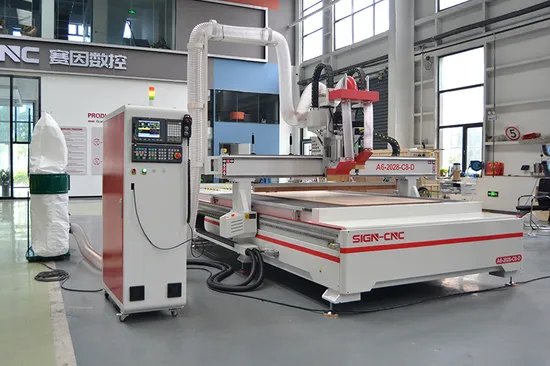

SIGN A6-2028-C8 Auto Tool Changer CNC Router Wood Machine with Auto Loading and Unloading TableProduct Parameters
| Model | A6-2028-C8 |
| Effective working area | 2000x2800mm |
| Z Axis Height | 400mm |
| Spindle | 9.0KW HQD ATC Air cooling |
| Spindle Speed | 0-24000RPM |
| Inverter | 11KW Delta |
| Control system | Syntec 60WE |
| Drive Motors | Syntec 1000W servo motor and driver |
| Reducer | Japan Shimpo |
| Guide Rail | 25mm |
| Max. Rapid Travel Rate | 45m/min |
| Max. Working Speed | 30m/min |
| Table Surface | Auto loading and unloading table (Vacuum) |
| Working Voltage: | 380V/50/60Hz |
| Command Language | G code |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam with post processor |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
Certifications
Company Profile
FAQ
Q: I need a CNC router, can you give me some suggestions?
A: Yes, of course. Pls let us know your working size and materials, then we can give you better suggestions.
