Plastic Rubber Product Analyzer for Precision Materials Characterization System

Product Description

Product Description

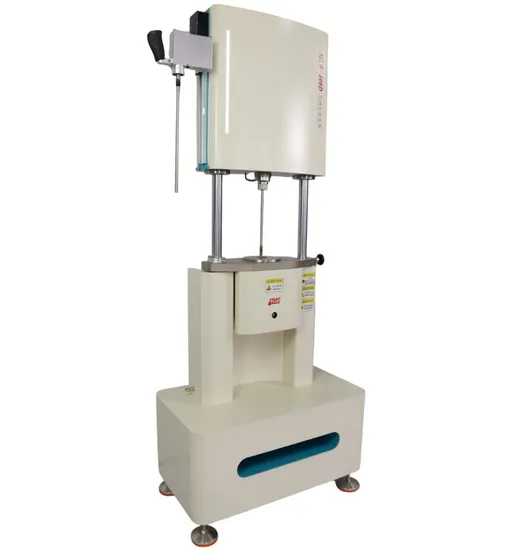

Capillary rheometer MLW-400D Application area 1. The MLW-400D is meticulously crafted to align with the rigorous 'capillary' specifications outlined in ISO 11443 and HG/T 4300-2012 standards. This sophisticated machinery is indispensable for assessing the shear rate and flow behavior of plastics and polymer substances. It operates seamlessly under controlled temperatures, delivering precise measurements of melt flow under shear stress, including the apparent viscosity of thermoplastics.
2. As a powerhouse of technological innovation, this intelligent capillary rheometer offers unparalleled versatility. Capable of functioning under constant pressure, velocity, or temperature, it accommodates various heating rates and shear rates. Its advanced software ensures automatic determination of critical parameters like pressure and temperature, tailored to different plastics and die diameters, while effortlessly generating and archiving precise data curves.
3. Tailor-made to meet specific needs, this rheometer can be customized in diverse configurations such as low or high-temperature models, varying pressures, and rod diameters, ensuring it perfectly suits user requirements.
Detailed Photos System composition The design of the system structure incorporates a magnificent 'mouth'-shaped frame, showcasing its robust structural integrity and streamlined elegance. The transmission mechanism is driven by a Taiwanese precision ball screw, ensuring dual kinetic energy body movement and enhancing operational stability during tests.The speed control system boasts a high-precision AC servo mechanism, ensuring meticulous displacement and pressure control.e. The heating unit employs advanced spiral heating wire technology for uniform barrel heating, and an innovative movable furnace design allows for effortless cleaning post-experimentation. The cutting-edge measurement and control system offers wireless remote capabilities for mobile preloading. The user-friendly software interface facilitates easy test mode configuration and real-time display of curves and calculation results.
Product Parameters

Temperature range	Room temperature~400ºC	Heating rate	1-10ºC/min,Continuously adjustable, and rapid heating
Temperature measurement display accuracy	0.1ºC	Pressure range	1-100MPa±0.5%
Maximum driving force	10KN ,20KN(Can be customized according to customer requirements)	Pressure measurement accuracy	±0.5%FS
Pressure resolution	0.1Mpa	Velocity range	0.01-500mm/min
Deformation measurement accuracy	±0.5%FS	Plug diameter	φ12 mm(Can be customized according to customer requirements)
Plug area	113.04mm2	Discharge die specification	Discharge die specification
Discharge die material	Tungsten carbide	Power supply	Power supply

Certifications
Company Profile Changchun Intelligent Instrument Equipment Co., Ltd. stands as a beacon of technological prowess, merging R&D, production, sales, and service since 1989. With 35 years of industry leadership, we are pioneers in China's testing machine landscape. Our expertise spans the development of optomechanical and electrical integrated testing instruments, analytical instruments, and automotive parts testers. Proudly ISO9001 certified, we are committed to excellence.
As a high-tech enterprise, Changchun Intelligent Instrument Equipment Co., Ltd. champions progressive design methodologies, leveraging its distinctive design and development prowess. Adhering to an array of national and international standards, including those from Germany, America, and Japan, we have innovated over a dozen state-of-the-art testing, analytical, and automotive part instruments.
