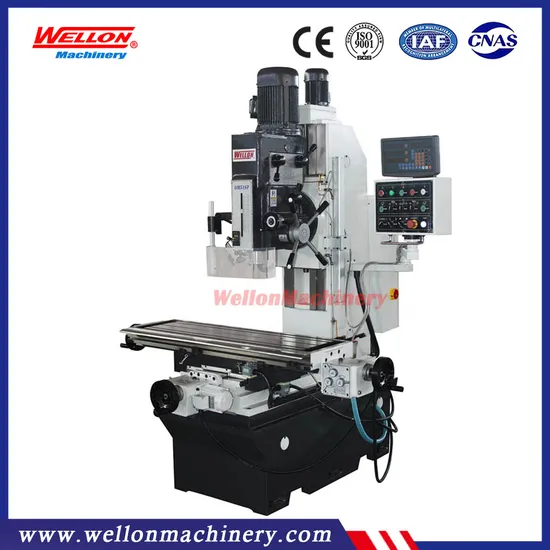

Bed Type Drilling Milling Machine XZ5150 XZ5150A

Product Description

Product Description
Bed Type Drilling Milling Machine XZ5150 XZ5150A
Detailed Photos
Product Parameters

Performence Features: 1. Automatic spindle speed.
2. Rectangular table guideways with high stability.
3. Hardened and ground table surface.
4. Headstock swivels ±45°.
5. Motorized lifting and lowering of headstock.
Technical parameter:

SPECIFICATION	UNIT	XZ5150A	XZ5150
Max.vertical milling dia.	mm	Φ32	Φ32
Max end mill width	mm	125	125
Max. drilling dia.	mm	Φ50	Φ50
Spindle taper		7:24 ISO40	7:24 ISO40
Spindle travel	mm	180	180
Spindle speed range	r/min	94-2256(16 steps)	94-2256(16 steps)
Automatic Feed Series sleeve	mm/r	0.1/0.15/0.3(3 steps)	0.1/0.15/0.3(3 steps)
Distance spindle to table	mm	100-580	100-600
Distance spindle to column	mm	400	400
Swivel angle of headstock		±45°	±45°
Up/down speeds of headstock	mm/min	2000	2000
Table size	mm	1250×360	1220×360
Table travel	mm	600×360	600×360
Table feeds range	mm/min	22-555(8 steps)810(max.)	18-555(8 steps)810(max.)
T-slot of table (no./width/distance)	mm	3/18/80	3/14/95
Main motor	kw	1.5/2.4	1.5/2.4
Motor of table power feed	w	750	370
Up/down motor of headstock	w	550	550
Coolant pump motor	w	40	40
N.W./G.W.	kg	1900/2150	1760/2000
Overall dimension	mm	1800×1900×2300	1730×1730×2300

Standard accessories:
Drill chuck
Mill chuck
End mill chuck
Spindle arbor
Tool bar
Optional accessories:
Digital read out
Machine vice
58pcs/set clamping kits
Horizontal/vertical rotary table
Universal dividing head
Middle sleeve
Reduction sleeve
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
