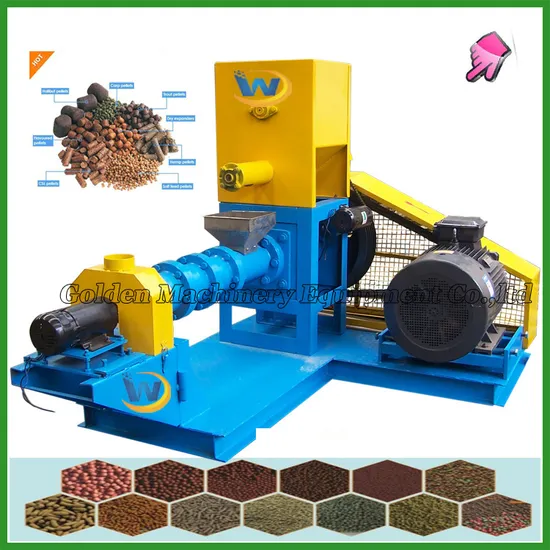

China Wet Poultry Fish Feed Pellet Granulating Granulator Machine

Product Description

Puffing Floating Fish Food Pellet feed extruder Machine
Main specification of the floating fish feed pellet machine
1.Fish feed pellet machine is a new-style line for improving market of fish feed pellet machine, which is developed successfully with our many years exploit experiences on food machinery.
2.Producing floating/sinking fish feed pellets, we can provide users the special usable aquatic feed formulations.
3.Ensure that the hardness of feed, water resistance, broken resistance, stability, prevention of water pollution, it can sterilize the food, make the pellet food nutrient-rich, easy to absorb.
1) Raw material:
Corn, wheat, soybean, grain, bone powder etc.
2) The raw material need grind into 60-80Mesh
3) The mositure content of the raw material need to be: 20-30%
4) The pellet shapes and the machine voltage are adjustable if you have any special requirement.
II Brief introduction of the floating fih feed making machine
A. With different moulds, the machine can produce different diameter food, such as 1.5mm, 2.5mm etc. So the food can meet different stage fish.
B. The floating fish feed pellet machine can make poultry-fodder, pet-fodder, as well as aquaculture-fodder and fishery feed.
C. It is mainly used to process the maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog, . Cat etc.
D. According to customers' demand and production scale, floating fish feed machine includes two kinds: Dry type machine and Wet type machine.
III Application of the floating fish feed making machine
With the features of high efficiency, low price, can reduce loss of the nutrition, simple performance, the floating fishing feed pellet machine is applies to professional farmers, small and medium-sized feed mills and research institutes, testing room, aqua farm and small feed factory.

Model	WSJY- 52	WSJY-65	WSJY-80	WSJY-95	WSJY-105	WSJY-120
Capacity --- kg/h	80-100	120-180	200-250	300-400	400-500	500-600
Pelleting Diameter--- mm	1.-6mm	1 -10 mm	1 -10 mm	1 -10 mm	1-10 mm	1 -12 mm
Motor Power--- kw	7.5	11	15	22	30	37
Cutting Power--- w	750	750	750	750	750	750
Screw Rod Diameter-- mm	52	65	75	95	105	120
Cooking degree	>95%	>95%	>95%	>95%	>95%	>95%

Fish/pet food machine Working process
After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.

Fish/pet food machine Application and features
1. According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc can be produced.
2. The finished pellets can keep floating for 3-15 hours without pollution to water.
3. The floating time can be controlled by the puffing degree adjustment.
4. Pet food machine/ fish feed machinery can make pellet from dia.1.0mm-20mm just by changing the mold.
5. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
7. The cutting device can be adjusted to make pellets of different length.
8. The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
